E2004S.30.10
ActivePrysmian Group

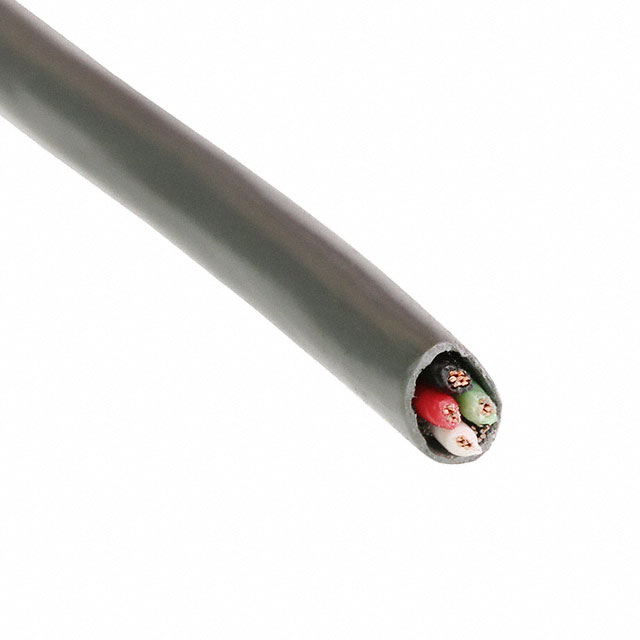

CABLE 4COND 22AWG GRAY SHLD
Deep-Dive with AI
Search across all available documentation for this part.
E2004S.30.10
ActivePrysmian Group
CABLE 4COND 22AWG GRAY SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | E2004S.30.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.144 in |
| Jacket (Insulation) Diameter [diameter] | 3.66 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 4 |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Sound, Security, Alarm |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 204.80 | |
| 2 | $ 194.82 | |||
| 3 | $ 189.18 | |||
| 5 | $ 182.27 | |||
| 7 | $ 177.84 | |||
| 10 | $ 173.23 | |||
| 25 | $ 161.85 | |||
| 50 | $ 153.64 | |||
Description
General part information
E2004S Series
4 Conductor Multi-Conductor Cable Gray 22 AWG Foil 1000.0' (304.8m)
Documents
Technical documentation and resources
No documents available
