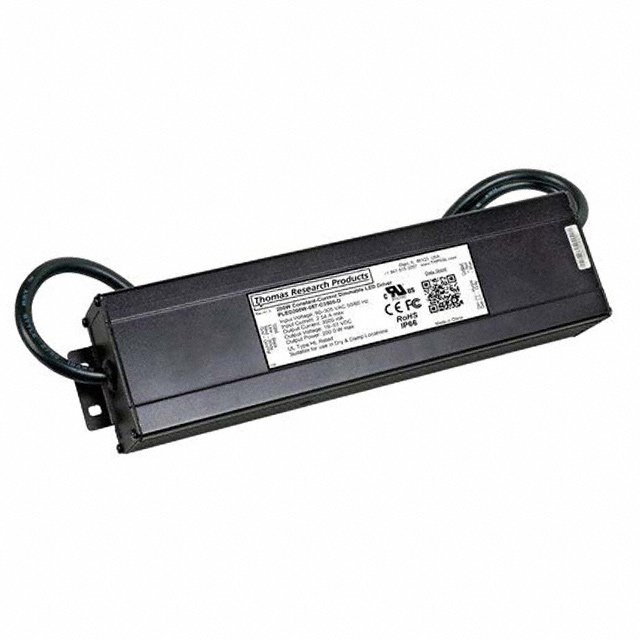

PLED200W-047-C4200
ActiveThomas Research Products
LED DRIVER CC AC/DC 16-47V 4.2A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PLED200W-047-C4200 |
|---|---|
| Approval Agency | CE, cURus |
| Current - Output (Max) [Max] | 4.2 A |
| Efficiency | 89 % |
| Features | SCP, OCP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 200 W |
| Ratings | NEMA 6, IP66 |
| Size / Dimension [x] | 237.3 mm |
| Size / Dimension [x] | 9.34 in |
| Size / Dimension [y] | 59.2 mm |
| Size / Dimension [y] | 2.33 in |
| Size / Dimension [z] | 1.47 in |
| Size / Dimension [z] | 37.3 mm |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 277 VAC |
| Voltage - Input (Min) [Min] | 100 VAC |
| Voltage - Output [Max] | 47 V |
| Voltage - Output [Min] | 16 V |
| Weight | 952.5 g |
| Weight | 2.1 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 500 | $ 154.96 | |
Description
General part information
PLED200 Series
4.2A 16 ~ 47V Constant Current LED Driver AC DC Converter Topology 1 Output
