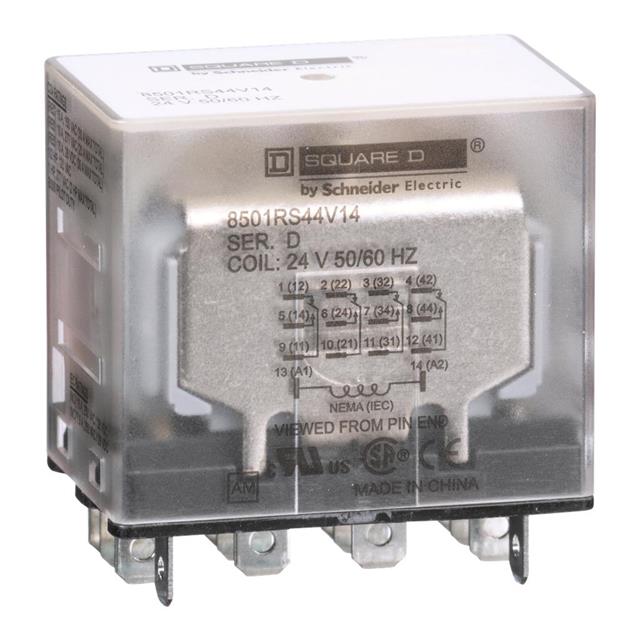

8501RS44V14
ActiveSQUARE D BY SCHNEIDER ELECTRIC
PLUG IN RELAY, TYPE R, MINIATURE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8501RS44V14
ActiveSQUARE D BY SCHNEIDER ELECTRIC
PLUG IN RELAY, TYPE R, MINIATURE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8501RS44V14 |
|---|---|
| Coil Type | Non Latching |
| Coil Voltage | 24 VAC |
| Contact Form | 4PDT (4 Form C) |
| Contact Material | Silver (Ag), Gold (Au) |
| Contact Rating (Current) | 15 A |
| Load - Max Switching | 4500 VA, 450 W |
| Mounting Type | Socketable |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage [Max] | 300 VAC, 30 VDC |
| Termination Style | Plug In |
8501RS Series
| Part | Mounting Type | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Switching Voltage [Max] | Release Time | Relay Type | Load - Max Switching | Approval Agency | Coil Type | Contact Material | Contact Rating (Current) | Termination Style | Operate Time | Coil Voltage | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SQUARE D BY SCHNEIDER ELECTRIC | Socketable | SPDT (1 Form C) | -40 °C | 55 °C | 30 VDC 300 VAC | 20 ms | General Purpose | 450 W 4500 VA | CE CSA UL | Non Latching | Gold (Au) Silver (Ag) | 15 A | Plug In | 20 ms | 24 VAC | |
SQUARE D BY SCHNEIDER ELECTRIC | Socketable | 4PDT (4 Form C) | -40 °C | 55 °C | 20 ms | General Purpose | 150 W 1200 VA | Non Latching | Silver Tin Oxide (AgSnO) | 5 A | Plug In | 20 ms | 12 VDC | 30 VDC 240 VAC | ||
SQUARE D BY SCHNEIDER ELECTRIC | Socketable | 4PDT (4 Form C) | -40 °C | 55 °C | 30 VDC 300 VAC | 20 ms | General Purpose | 240 W 2400 VA | Non Latching | Gold (Au) Silver (Ag) | 8 A | Plug In | 20 ms | 24 VDC | ||
SQUARE D BY SCHNEIDER ELECTRIC | Socketable | 4PDT (4 Form C) | -40 °C | 55 °C | 30 VDC 300 VAC | 20 ms | General Purpose | 450 W 4500 VA | CE CSA UL | Non Latching | Gold (Au) Silver (Ag) | 15 A | Plug In | 20 ms | 24 VDC | |
SQUARE D BY SCHNEIDER ELECTRIC | Socketable | 3PDT (3 Form C) | -40 °C | 55 °C | 30 VDC 300 VAC | 20 ms | General Purpose | 450 W 4500 VA | Non Latching | Gold (Au) Silver (Ag) | 15 A | Plug In | 20 ms | 24 VDC | ||
SQUARE D BY SCHNEIDER ELECTRIC | Socketable | 4PDT (4 Form C) | -40 °C | 55 °C | 30 VDC 300 VAC | 20 ms | General Purpose | 240 W 2400 VA | Non Latching | Gold (Au) Silver (Ag) | 8 A | Plug In | 20 ms | 12 VDC | ||
SQUARE D BY SCHNEIDER ELECTRIC | Socketable | SPDT (1 Form C) | -40 °C | 55 °C | 30 VDC 300 VAC | 20 ms | General Purpose | 450 W 4500 VA | CE CSA UL | Non Latching | Gold (Au) Silver (Ag) | 15 A | Plug In | 20 ms | 24 VDC | |
SQUARE D BY SCHNEIDER ELECTRIC | Socketable | 4PDT (4 Form C) | -40 °C | 55 °C | 20 ms | General Purpose | 150 W 1200 VA | CE CSA UL | Non Latching | Gold (Au) Silver (Ag) | 5 A | Plug In | 20 ms | 24 VAC | 30 VDC 240 VAC | |
SQUARE D BY SCHNEIDER ELECTRIC | Socketable | 4PDT (4 Form C) | -40 °C | 55 °C | 30 VDC 300 VAC | 20 ms | General Purpose | 450 W 4500 VA | Non Latching | Gold (Au) Silver (Ag) | 15 A | Plug In | 20 ms | 24 VAC | ||
SQUARE D BY SCHNEIDER ELECTRIC | Socketable | 4PDT (4 Form C) | -40 °C | 55 °C | 30 VDC 300 VAC | 20 ms | General Purpose | 450 W 4500 VA | Non Latching | Gold (Au) Silver (Ag) | 15 A | Plug In | 20 ms | 120 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 76.34 | |
Description
General part information
8501RS Series
General Purpose Relay 4PDT (4 Form C) 24VAC Coil Socketable
