245-20-1-03

Active

CnC Tech, LLC

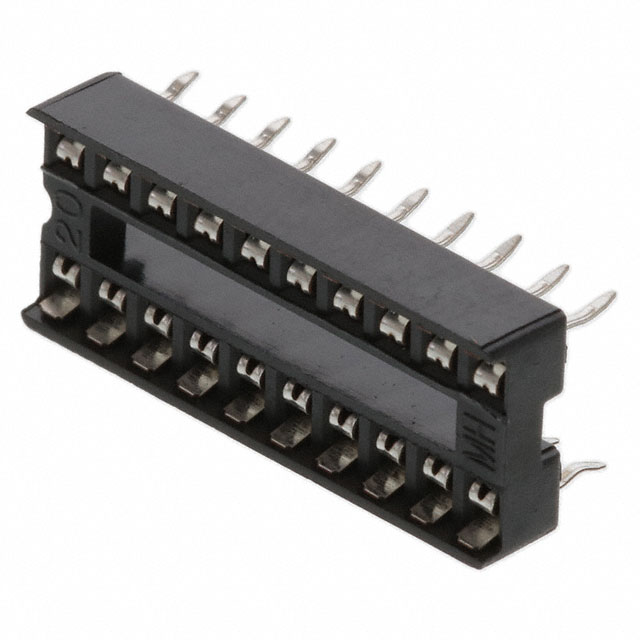

CONN IC DIP SOCKET 20POS TIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

245-20-1-03

Active

CnC Tech, LLC

CONN IC DIP SOCKET 20POS TIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	245-20-1-03

Contact Finish - Post	Tin
Contact Finish Thickness - Mating	60 Áin
Contact Finish Thickness - Mating	1.52 Ám
Contact Finish Thickness - Post	60 µin
Contact Finish Thickness - Post	1.52 µm
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Contact Resistance	20 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Kinked Pin
Number of Positions or Pins (Grid)	20
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.15 mm
Termination Post Length	0.124 in
Type	0.3 "
Type	7.62 mm
Type	DIP

245 Series

Part	Type	Type	Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Finish - Post	Termination	Contact Resistance	Contact Material - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Material - Post	Material Flammability Rating	Termination Post Length	Termination Post Length	Pitch - Post	Pitch - Post	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions or Pins (Grid)	Features	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
CnC Tech, LLC 245-08-1-03	0.3 "	7.62 mm	DIP	60 µin	1.52 µm	Kinked Pin Through Hole	Tin	Solder	20 mOhm	Phosphor Bronze	60 Áin	1.52 Ám	1 A	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	3.15 mm	0.124 in	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	8	Open Frame
CnC Tech, LLC 245-16-1-03	0.3 "	7.62 mm	DIP	60 µin	1.52 µm	Kinked Pin Through Hole	Tin	Solder	20 mOhm	Phosphor Bronze	60 Áin	1.52 Ám	1 A	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	3.15 mm	0.124 in	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	16	Open Frame
CnC Tech, LLC 245-20-1-03	0.3 "	7.62 mm	DIP	60 µin	1.52 µm	Kinked Pin Through Hole	Tin	Solder	20 mOhm	Phosphor Bronze	60 Áin	1.52 Ám	1 A	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	3.15 mm	0.124 in	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	20	Open Frame
CnC Tech, LLC 245-14-1-03	0.3 "	7.62 mm	DIP	60 µin	1.52 µm	Kinked Pin Through Hole	Tin	Solder	20 mOhm	Phosphor Bronze	60 Áin	1.52 Ám	1 A	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	3.15 mm	0.124 in	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	14	Open Frame
CnC Tech, LLC 245-40-1-06	0.6 in	15.24 mm	DIP	60 µin	1.52 µm	Kinked Pin Through Hole	Tin	Solder	20 mOhm	Phosphor Bronze	60 Áin	1.52 Ám	1 A	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	3.15 mm	0.124 in	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	40	Open Frame	20	2
CnC Tech, LLC 245-24-1-06	0.6 in	15.24 mm	DIP	60 µin	1.52 µm	Kinked Pin Through Hole	Tin	Solder	20 mOhm	Phosphor Bronze	60 Áin	1.52 Ám	1 A	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	3.15 mm	0.124 in	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	24	Open Frame
CnC Tech, LLC 245-28-1-06	0.6 in	15.24 mm	DIP	60 µin	1.52 µm	Kinked Pin Through Hole	Tin	Solder	20 mOhm	Phosphor Bronze	60 Áin	1.52 Ám	1 A	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	3.15 mm	0.124 in	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	-40 °C	105 ░C	28	Open Frame

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.53
		24	$ 0.43
		48	$ 0.41
		72	$ 0.39
		120	$ 0.38
		264	$ 0.36
		504	$ 0.34
		1008	$ 0.33
		2520	$ 0.31

Description

General part information

245 Series

20 (2 x 10) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Through Hole, Kinked Pin
