SZESD8351XV2T5G

Obsolete

ON Semiconductor

UNIDIRECTIONAL SCR ESD PROTECTION

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Package Drawing-502-01-SOD-523 1.20x0.80x0.60

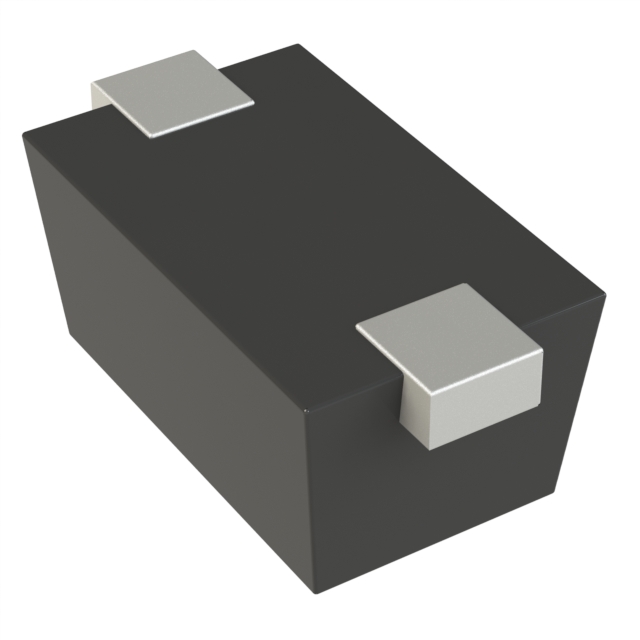

SZESD8351XV2T5G

Obsolete

ON Semiconductor

UNIDIRECTIONAL SCR ESD PROTECTION

Deep-Dive with AI

DocumentsDatasheet Package Drawing-502-01-SOD-523 1.20x0.80x0.60

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SZESD8351XV2T5G

Applications	USB 2.0
Capacitance @ Frequency	0.4 pF
Current - Peak Pulse (10/1000µs)	5 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	SC-79, SOD-523
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	SOD-523
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	5.5 V
Voltage - Clamping (Max) @ Ipp	11.2 V
Voltage - Reverse Standoff (Typ)	3.3 V

SZESD8351 Series

Unidirectional SCR ESD Protection

Part	Package / Case	Type	Current - Peak Pulse (10/1000µs)	Grade	Voltage - Breakdown (Min) [Min]	Qualification	Capacitance @ Frequency	Voltage - Reverse Standoff (Typ)	Supplier Device Package	Voltage - Clamping (Max) @ Ipp	Mounting Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]	Supplier Device Package [x]	Supplier Device Package [y]	Package / Case
ON Semiconductor SZESD8351XV2T5G	SC-79 SOD-523	Zener	5 A	Automotive	5.5 V	AEC-Q101	0.4 pF	3.3 V	SOD-523	11.2 V	Surface Mount	USB 2.0	125 ¯C	-55 °C	1
ON Semiconductor SZESD8351P2T5G	SOD-923	Zener	5 A	Automotive	5.5 V	AEC-Q101	0.37 pF	3.3 V	SOD-923		Surface Mount		125 ¯C	-55 °C	1	11.2 V
ON Semiconductor SZESD8351MUT5G	0201	Zener	5 A	Automotive	5.5 V	AEC-Q101	0.25 pF	3.3 V	0201 2-X3DFN		Surface Mount		125 ¯C	-55 °C	1	11.2 V	0.6	0.3	0603 Metric
ON Semiconductor SZESD8351HT1G	SC-76 SOD-323	Zener	5 A	Automotive	5.5 V	AEC-Q101	0.4 pF	3.3 V	SOD-323		Surface Mount		125 ¯C	-55 °C	1	11.2 V
ON Semiconductor ESD8351XV2T5G	SC-79 SOD-523	Zener	5 A		5.5 V		0.37 pF	3.3 V	SOD-523	11.2 V	Surface Mount	USB 2.0	125 ¯C	-55 °C	1
ON Semiconductor ESD8351HT1G	SC-76 SOD-323	Zener	5 A		5.5 V		0.37 pF	3.3 V	SOD-323		Surface Mount	General Purpose	125 ¯C	-55 °C	1	11.2 V
ON Semiconductor ESD8351P2T5G	SOD-923	Zener	5 A		5.5 V		0.37 pF	3.3 V	SOD-923		Surface Mount	General Purpose	125 ¯C	-55 °C	1	11.2 V
ON Semiconductor ESD8351XV2T1G	SC-79 SOD-523	Zener	5 A		5.5 V		0.4 pF	3.3 V	SOD-523		Surface Mount	General Purpose	125 ¯C	-55 °C	1	11.2 V
ON Semiconductor ESD8351MUT5G	0201	Zener	5 A		5.5 V		0.37 pF	3.3 V	0201 2-X3DFN		Surface Mount	General Purpose	125 ¯C	-55 °C	1	11.2 V	0.6	0.3	0603 Metric

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SZESD8351 Series

The ESD8351 Series is designed to protect high speed data lines from ESD. Ultra-low capacitance and low ESD clamping make this device an ideal solution for protecting voltage sensitive high speed data lines.
