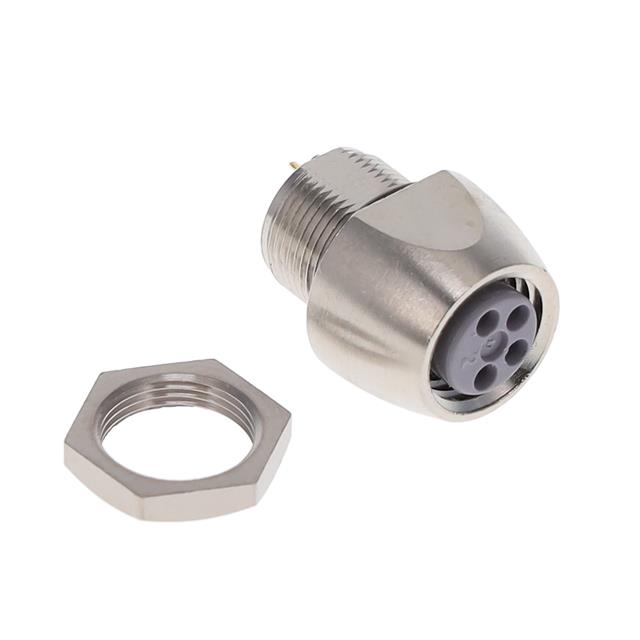

XS3PM4222

Active

Omron Electronics Inc-EMC Div

CONN RCPT FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONN RCPT FMALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	XS3PM4222

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	16 Áin
Contact Finish Thickness - Mating	0.41 Ám
Contact Material	Brass
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M8-4
Voltage Rating	125 VDC

Part	Material Flammability Rating	Mounting Feature	Contact Finish - Mating	Shell Material	Orientation	Primary Material	Ingress Protection	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Material	Connector Type	Number of Positions	Insert Material	Shell Finish	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Omron Electronics Inc-EMC Div XS3PM4222	UL94 V-0	Bulkhead - Rear Side Nut	Gold	Brass	Keyed	Metal	IP67 - Dust Tight Waterproof	M8-4	70 °C	-25 °C	125 VDC	Brass	Receptacle Female Sockets	4	Polybutylene Terephthalate (PBT)	Nickel	Silver	16 Áin	0.41 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical documentation and resources

No documents available
