DF-G3-PD-Q7

Active

BANNER ENGINEERING

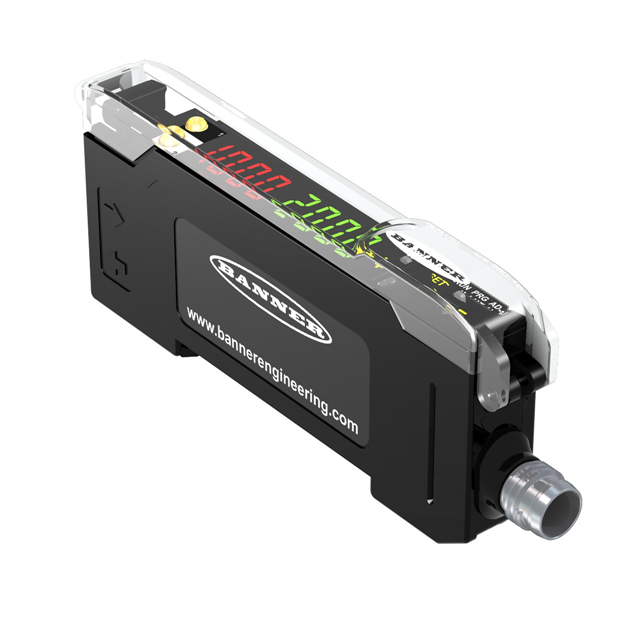

DF-G3 RED BEAM HIGH POWER DUAL DISPLAY FIBER AMPLIFIER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

DF-G3 RED BEAM HIGH POWER DUAL DISPLAY FIBER AMPLIFIER

Technical Specifications

Parameters and characteristics for this part

Specification	DF-G3-PD-Q7

Amplifier Type	Fiber Amp
Current - Supply	35 mA
Mounting Type	DIN Rail
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Output Type	PNP
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Mounting Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Amplifier Type	Current - Supply	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type
BANNER ENGINEERING DF-G3-PD-Q7	DIN Rail	55 °C	-10 °C	Fiber Amp	35 mA	30 VDC	10 VDC	PNP
BANNER ENGINEERING DF-G3-NU-2M	DIN Rail	55 °C	-10 °C	Fiber Amp	35 mA	30 VDC	12 V	NPN
BANNER ENGINEERING DF-G3-NS-2M	DIN Rail	55 °C	-10 °C	Fiber Amp		30 VDC	10 VDC	NPN
BANNER ENGINEERING DF-G3-PS-Q3	DIN Rail	55 °C	-10 °C	Fiber Amp	35 mA	30 VDC	10 VDC	PNP
BANNER ENGINEERING DF-G3IR-PS-Q7	DIN Rail	55 °C	-10 °C	Fiber Amp	35 mA	30 VDC	10 VDC	PNP
BANNER ENGINEERING DF-G3LIR-PS-Q5	DIN Rail	55 °C	-10 °C	Fiber Amp	35 mA	30 VDC	10 VDC	PNP
BANNER ENGINEERING DF-G3-PI-Q5	DIN Rail	55 °C	-10 °C	Fiber Amp		30 VDC	10 VDC	PNP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 238.00
Newark	Each	1	$ 242.00

General part information

Fiber Amp Sensor Amplifier DIN Rail
