837-008-558-608
ActiveEDAC Inc.

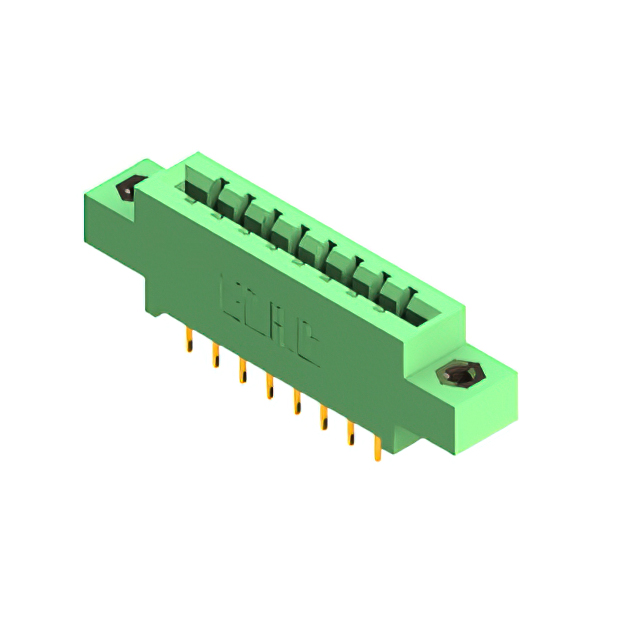

CONN EDGE SGL FMALE 8POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-008-558-608
ActiveEDAC Inc.
CONN EDGE SGL FMALE 8POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-008-558-608 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
837-008 Series
| Part | Number of Positions | Mounting Type | Color | Contact Type | Number of Rows | Termination Rows | Flange Feature | Contact Material | Pitch [x] | Pitch [x] | Card Type | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Termination | Gender | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 8 | Through Hole Right Angle | Green | Cantilever | 1 | 1 | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Single Edge | 8 | 8 | 8 | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Gold | Solder | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 8 | Through Hole | Green | Cantilever | 1 | 1 | Floating Bobbin Top Mount Opening | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Single Edge | 8 | 8 | 8 | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Gold | Wire Wrap | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 2.95 mm | 0.116 in |
EDAC Inc. | 8 | Through Hole | Green | Cantilever | 1 | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Single Edge | 8 | 8 | 8 | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Gold | Solder | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 8 | Through Hole | Green | Cantilever | 1 | 1 | M3 Threaded Insert Top Mount Opening | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Single Edge | 8 | 8 | 8 | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Gold | Solder | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 8 | Through Hole | Green | Cantilever | 1 | 1 | Top Mount Opening Unthreaded | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Single Edge | 8 | 8 | 8 | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Gold | Solder | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 3.96 mm | 0.156 in |
EDAC Inc. | 8 | Through Hole Right Angle | Green | Cantilever | 1 | 1 | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Single Edge | 8 | 8 | 8 | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Gold | Solder | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 8 | Through Hole | Green | Cantilever | 1 | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Single Edge | 8 | 8 | 8 | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Gold | Wire Wrap | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 8 | Through Hole Right Angle | Green | Cantilever | 1 | 1 | Floating Bobbin Flush Mount | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Single Edge | 8 | 8 | 8 | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Gold | Solder | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 2.95 mm | 0.116 in |
EDAC Inc. | 8 | Through Hole | Green | Cantilever | 1 | 1 | Flush Mount Side Opening Unthreaded | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Single Edge | 8 | 8 | 8 | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Gold | Wire Wrap | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " |
EDAC Inc. | 8 | Through Hole | Green | Cantilever | 1 | 1 | Floating Bobbin Top Mount Opening | Copper Alloy | 0.156 in | 3.96 mm | Non Specified - Single Edge | 8 | 8 | 8 | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Gold | Wire Wrap | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
837-008 Series
8 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
