EP2-16L

Active

SAB North America

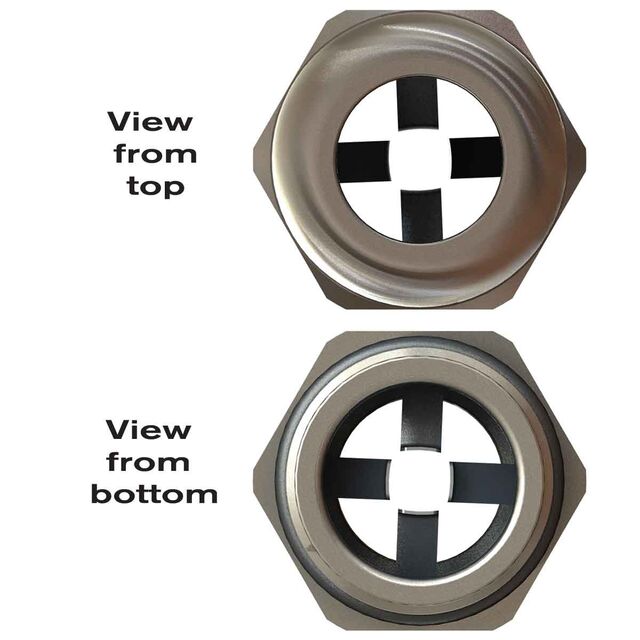

CABLE GLAND 10-14MM PG16 BRASS

Search across all available documentation for this part.

Active

SAB North America

CABLE GLAND 10-14MM PG16 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	EP2-16L

Color	Silver
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max]	14 mm
Outside Cable Diameter (Max) [Max]	0.551 "
Outside Cable Diameter (Min) [Min] [diameter]	0.394 in
Outside Cable Diameter (Min) [Min] [diameter]	10 mm
Panel Hole Size	0.886 in
Panel Hole Size	22.5 mm
Thread Length	10 mm
Thread Length	0.394 in
Thread Size	PG16
Type	Cable Gland

Part	Ingress Protection	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Thread Size	Material	Type	Panel Hole Size	Panel Hole Size	Color	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length
SAB North America EP2-16L	IP68 - Dust Tight Waterproof	0.394 in	10 mm	14 mm	0.551 "	PG16	Brass Nickel Plated	Cable Gland	0.886 in	22.5 mm	Silver	100 °C	-20 C	10 mm	0.394 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated PG16 Silver
