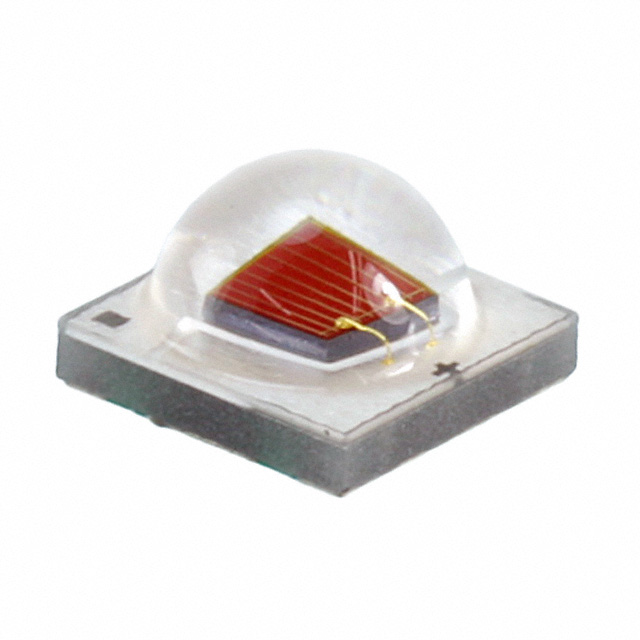

XPEBRD-L1-R250-00701

Active

Cree LED

LED XLAMP XPE2 RED 625NM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XPEBRD-L1-R250-00701

Color	Red
Current - Max [Max]	1 A
Current - Test	350 mA
Height - Seated (Max) [Max] [z]	2.39 mm
Height - Seated (Max) [Max] [z]	0.094 "
Lumens/Watt @ Current - Test	92 lm/W
Luminous Flux @ Current/Temperature	71 lm
Luminous Flux @ Current/Temperature [Max]	74 lm
Luminous Flux @ Current/Temperature [Min]	67 lm
Mounting Type	Surface Mount
Package / Case	3535 Metric
Package / Case	1414
Size / Dimension [x]	3.45 mm
Size / Dimension [x]	0.136 in
Size / Dimension [y]	0.136 in
Size / Dimension [y]	3.45 mm
Supplier Device Package	SMD
Viewing Angle	130 °
Voltage - Forward (Vf) (Typ)	2.2 V
Wavelength [Max]	630 nm
Wavelength [Min]	620 nm

XPEBRD Series

Part	Lumens/Watt @ Current - Test	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Wavelength	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Current - Max [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Test	Color	Mounting Type	Viewing Angle	Wavelength [Min]	Wavelength [Max]
Cree LED XPEBRD-L1-0000-00802	100 lm/W	3535 Metric	1414	2.2 V	SMD	3.45 mm	0.136 in	0.136 in	3.45 mm	623 nm	81 lm	77 lm	74 lm	1 A	2.39 mm	0.094 "	350 mA	Red	Surface Mount	130 °
Cree LED XPEBRD-L1-0000-00501	77 lm/W	3535 Metric	1414	2.2 V	SMD	3.45 mm	0.136 in	0.136 in	3.45 mm			59 lm		1 A	2.39 mm	0.094 "	350 mA	Red	Surface Mount	130 °	620 nm	630 nm
Cree LED XPEBRD-L1-R250-00701	92 lm/W	3535 Metric	1414	2.2 V	SMD	3.45 mm	0.136 in	0.136 in	3.45 mm		74 lm	71 lm	67 lm	1 A	2.39 mm	0.094 "	350 mA	Red	Surface Mount	130 °	620 nm	630 nm
Cree LED XPEBRD-L1-R250-00902	109 lm/W	3535 Metric	1414	2.2 V	SMD	3.45 mm	0.136 in	0.136 in	3.45 mm	623 nm	87 lm		81 lm	1 A	2.39 mm	0.094 "	350 mA	Red	Surface Mount	130 °
Cree LED XPEBRD-L1-0000-00601	84 lm/W	3535 Metric	1414	2.2 V	SMD	3.45 mm	0.136 in	0.136 in	3.45 mm		67 lm	65 lm	62 lm	1 A	2.39 mm	0.094 "	350 mA	Red	Surface Mount	130 °	620 nm	630 nm
Cree LED XPEBRD-L1-0000-00702	92 lm/W	3535 Metric	1414	2.2 V	SMD	3.45 mm	0.136 in	0.136 in	3.45 mm	623 nm	74 lm	71 lm	67 lm	1 A	2.39 mm	0.094 "	350 mA	Red	Surface Mount	130 °
Cree LED XPEBRD-L1-0000-00A02		3535 Metric	1414	2.18 V	1414	3.45 mm	0.136 in	0.136 in	3.45 mm					1.5 A	2.39 mm	0.094 "	350 mA	Red	Surface Mount	130 °
Cree LED XPEBRD-L1-R250-00801	100 lm/W	3535 Metric	1414	2.2 V	SMD	3.45 mm	0.136 in	0.136 in	3.45 mm		81 lm	77 lm	74 lm	1 A	2.39 mm	0.094 "	350 mA	Red	Surface Mount	130 °	620 nm	630 nm
Cree LED XPEBRD-L1-0000-00901	109 lm/W	3535 Metric	1414	2.2 V	SMD	3.45 mm	0.136 in	0.136 in	3.45 mm		87 lm		81 lm	1 A	2.39 mm	0.094 "	350 mA	Red	Surface Mount	130 °	620 nm	630 nm
Cree LED XPEBRD-L1-0000-00B01		3535 Metric	1414	2.18 V	1414	3.45 mm	0.136 in	0.136 in	3.45 mm					1.5 A	2.39 mm	0.094 "	350 mA	Red	Surface Mount	130 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 1.41
		500	$ 1.32
		1250	$ 1.21

Description

General part information

XPEBRD Series

LED Lighting Color XLamp® XP-E2 Red 625nm (620nm ~ 630nm) 1414 (3535 Metric)
