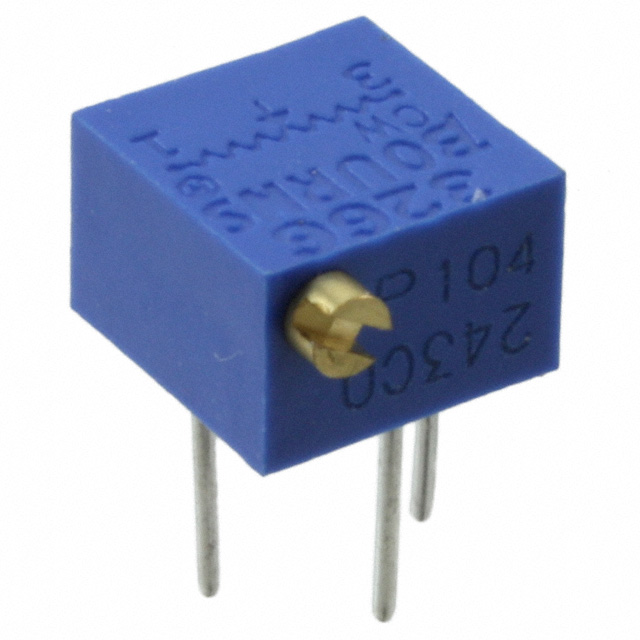

3266P-1-254LF

Active

Bourns Inc.

TRIMMER 250K OHM 0.25W PC PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3266P-1-254LF

Active

Bourns Inc.

TRIMMER 250K OHM 0.25W PC PIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3266P-1-254LF

Adjustment Type	Side Adjustment
Mounting Type	Through Hole
Number of Turns	12
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance	250 kOhms
Resistive Material	Cermet
Size / Dimension [x]	6.35 mm
Size / Dimension [x]	0.25 "
Size / Dimension [y]	4.42 mm
Size / Dimension [y]	0.174 in
Temperature Coefficient	100 ppm/°C
Termination Style	PC Pins
Tolerance	10 %

3266P Series

Part	Power (Watts)	Power (Watts)	Termination Style	Tolerance	Mounting Type	Resistance	Number of Turns	Adjustment Type	Resistive Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Temperature Coefficient
Bourns Inc. 3266P-1-254	0.25 W	250 mW	PC Pins	10 %	Through Hole	250 kOhms	12	Side Adjustment	Cermet	4.42 mm	6.35 mm	0.25 "	0.174 in	100 ppm/°C
Bourns Inc. 3266P-1-104	0.25 W	250 mW	PC Pins	10 %	Through Hole	100 kOhms	12	Side Adjustment	Cermet	4.42 mm	6.35 mm	0.25 "	0.174 in	100 ppm/°C
Bourns Inc. 3266P-1-203LF	0.25 W	250 mW	PC Pins	10 %	Through Hole	20 kOhms	12	Side Adjustment	Cermet	4.42 mm	6.35 mm	0.25 "	0.174 in	100 ppm/°C
Bourns Inc. 3266P-1-104LF	0.25 W	250 mW	PC Pins	10 %	Through Hole	100 kOhms	12	Side Adjustment	Cermet	4.42 mm	6.35 mm	0.25 "	0.174 in	100 ppm/°C
Bourns Inc. 3266P-1-105	0.25 W	250 mW	PC Pins	10 %	Through Hole	1 MOhms	12	Side Adjustment	Cermet	4.42 mm	6.35 mm	0.25 "	0.174 in	100 ppm/°C
Bourns Inc. 3266P-1-204LF	0.25 W	250 mW	PC Pins	10 %	Through Hole	200000 Ohms	12	Side Adjustment	Cermet	4.42 mm	6.35 mm	0.25 "	0.174 in	100 ppm/°C
Bourns Inc. 3266P-1-253LF	0.25 W	250 mW	PC Pins	10 %	Through Hole	25 kOhms	12	Side Adjustment	Cermet	4.42 mm	6.35 mm	0.25 "	0.174 in	100 ppm/°C
Bourns Inc. 3266P-1-504LF	0.25 W	250 mW	PC Pins	10 %	Through Hole		12	Side Adjustment	Cermet	4.42 mm	6.35 mm	0.25 "	0.174 in	100 ppm/°C
Bourns Inc. 3266P-1-503	0.25 W	250 mW	PC Pins	10 %	Through Hole	50 kOhms	12	Side Adjustment	Cermet	4.42 mm	6.35 mm	0.25 "	0.174 in	100 ppm/°C
Bourns Inc. 3266P-1-254LF	0.25 W	250 mW	PC Pins	10 %	Through Hole	250 kOhms	12	Side Adjustment	Cermet	4.42 mm	6.35 mm	0.25 "	0.174 in	100 ppm/°C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	200	$ 3.02

Description

General part information

3266P Series

250 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Cermet 12.0 Turn Side Adjustment
