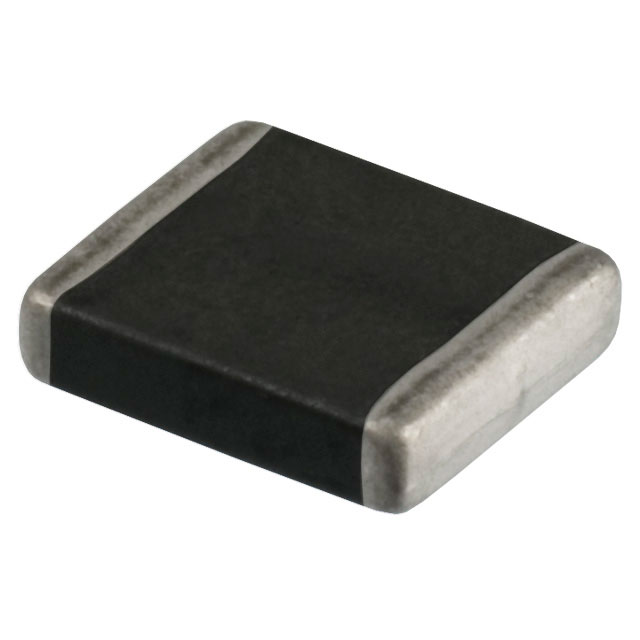

ZV30K2220T122N
ActiveStackpole Electronics Inc
VARISTOR 47V 12KA 2220
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZV30K2220T122N
ActiveStackpole Electronics Inc
VARISTOR 47V 12KA 2220
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZV30K2220T122N |
|---|---|
| Current - Surge | 12 kA |
| Energy | 12.2 J |
| Grade | Automotive |
| Maximum AC Volts [Max] | 30 V |
| Maximum DC Volts [Max] | 38 V |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Package / Case | 5750 Metric |
| Package / Case | 2220 |
| Qualification | AEC-Q200 |
| Varistor Voltage (Max) [Max] | 51.7 V |
| Varistor Voltage (Min) [Min] | 42.3 V |
| Varistor Voltage (Typ) | 47 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.43 | |
| 10 | $ 1.28 | |||
| 25 | $ 1.22 | |||
| 100 | $ 1.00 | |||
| 250 | $ 0.93 | |||
| 500 | $ 0.83 | |||
| Digi-Reel® | 1 | $ 1.43 | ||
| 10 | $ 1.28 | |||
| 25 | $ 1.22 | |||
| 100 | $ 1.00 | |||
| 250 | $ 0.93 | |||
| 500 | $ 0.83 | |||
| Tape & Reel (TR) | 1000 | $ 0.54 | ||
Description
General part information
ZV30K Series
47 V 12 kA Varistor 1 Circuit Surface Mount 2220 (5750 Metric)
