316-026-400-168

Active

EDAC Inc.

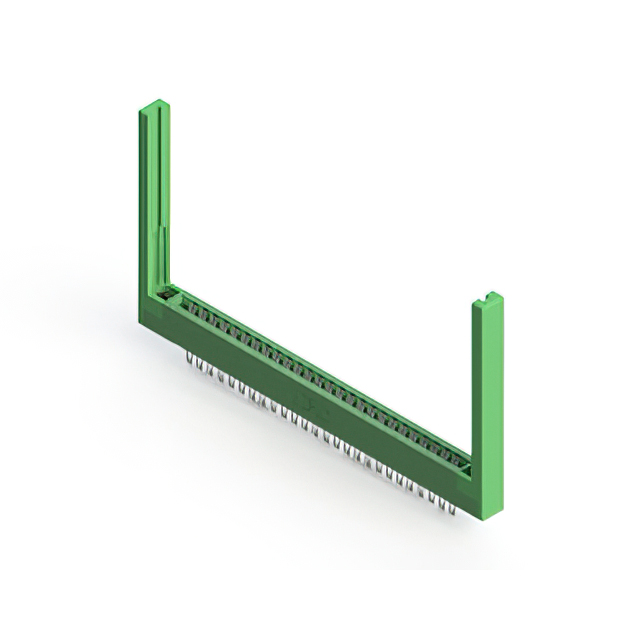

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 26 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

316-026-400-168

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 26 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	316-026-400-168

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Number of Positions	52
Number of Positions/Bay/Row [custom]	26
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1

316-026 Series

Part	Termination	Contact Finish	Contact Type	Read Out	Gender	Color	Flange Feature	Card Type	Number of Positions	Contact Material	Number of Rows	Pitch [x]	Pitch [x]	Termination Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Features	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 316-026-500-158	Solder Eyelet(s)	Gold	Cantilever	Dual	Female	Green	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	52	Copper Alloy	2	0.156 in	3.96 mm	1	-40 °C	105 ░C	26	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides	10 Áin	0.25 Ám	Polyester Thermoplastic
EDAC Inc. 316-026-500-107	Solder Eyelet(s)	Gold	Cantilever	Dual	Female	Green	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Dual Edge	52	Copper Alloy	2	0.156 in	3.96 mm	1	-40 °C	105 ░C	26	1.37 mm	0.054 "	1.78 mm	0.07 in		10 Áin	0.25 Ám	Polyester Thermoplastic
EDAC Inc. 316-026-520-178	Solder	Gold	Cantilever	Dual	Female	Green	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	52	Copper Alloy	2	0.156 in	3.96 mm	1	-40 °C	105 ░C	26	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides	10 Áin	0.25 Ám	Polyester Thermoplastic	Through Hole
EDAC Inc. 316-026-521-104	Solder	Gold	Cantilever	Dual	Female	Green	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	52	Copper Alloy	2	0.156 in	3.96 mm	1	-40 °C	105 ░C	26	1.37 mm	0.054 "	1.78 mm	0.07 in		10 Áin	0.25 Ám	Polyester Thermoplastic	Through Hole	3.96 mm	0.156 in
EDAC Inc. 316-026-400-168	Solder Eyelet(s)	Tin	Cantilever	Dual	Female	Green	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	52	Copper Alloy	2	0.156 in	3.96 mm	1	-40 °C	105 ░C	26	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides			Polyester Thermoplastic
EDAC Inc. 316-026-500-103	Solder Eyelet(s)	Gold	Cantilever	Dual	Female	Green	Floating Bobbin Flush Mount	Non Specified - Dual Edge	52	Copper Alloy	2	0.156 in	3.96 mm	1	-40 °C	105 ░C	26	1.37 mm	0.054 "	1.78 mm	0.07 in		10 Áin	0.25 Ám	Polyester Thermoplastic		2.95 mm	0.116 in
EDAC Inc. 316-026-420-107	Solder	Tin	Cantilever	Dual	Female	Green	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Dual Edge	52	Copper Alloy	2	0.156 in	3.96 mm	1	-40 °C	105 ░C	26	1.37 mm	0.054 "	1.78 mm	0.07 in				Polyester Thermoplastic	Panel Mount Through Hole
EDAC Inc. 316-026-521-158	Solder	Gold	Cantilever	Dual	Female	Green	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	52	Copper Alloy	2	0.156 in	3.96 mm	1	-40 °C	105 ░C	26	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides	10 Áin	0.25 Ám	Polyester Thermoplastic	Through Hole
EDAC Inc. 316-026-520-104	Solder	Gold	Cantilever	Dual	Female	Green	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	52	Copper Alloy	2	0.156 in	3.96 mm	1	-40 °C	105 ░C	26	1.37 mm	0.054 "	1.78 mm	0.07 in		10 Áin	0.25 Ám	Polyester Thermoplastic	Panel Mount Through Hole	3.96 mm	0.156 in
EDAC Inc. 316-026-400-102	Solder Eyelet(s)	Tin	Cantilever	Dual	Female	Green	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	52	Copper Alloy	2	0.156 in	3.96 mm	1	-40 °C	105 ░C	26	1.37 mm	0.054 "	1.78 mm	0.07 in				Polyester Thermoplastic		3.25 mm	0.128 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 17.19
Newark	Each	1	$ 19.97
		100	$ 12.35
		250	$ 10.43
		500	$ 9.35
		1000	$ 7.97

Description

General part information

316-026 Series

52 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
