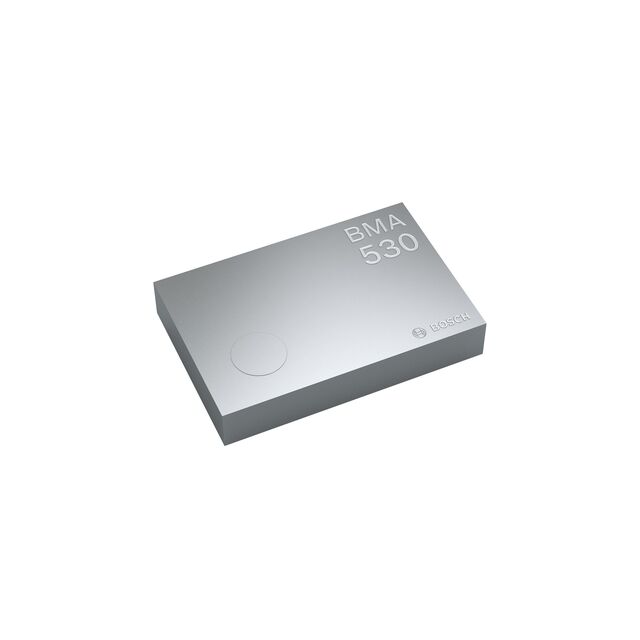

BMA530
ActiveBosch Sensortec
THE NEW ACCELEROMETER WITH AN AD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BMA530 |
|---|---|
| Acceleration Range | 4 g, 16 g, 8 g |
| Acceleration Range [Max] | 2 g |
| Acceleration Range [Min] | -2 g |
| Axis [x] | X |
| Axis [y] | Y |
| Axis [z] | Z |
| Bandwidth [Max] | 6.4 kHz |
| Bandwidth [Min] | 1.56 Hz |
| Mounting Type | Surface Mount |
| Output Type | I2C, I3C, SPI |
| Package / Case | 6-UFBGA, WLCSP |
| Supplier Device Package | 6-WLCSP |
| Supplier Device Package [x] | 1.2 |
| Supplier Device Package [y] | 0.8 |
| Type | Digital |
| Voltage - Supply [Max] | 3.63 V |
| Voltage - Supply [Min] | 1.62 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.02 | |
| 5 | $ 1.70 | |||
| 10 | $ 1.58 | |||
| 25 | $ 1.43 | |||
| 50 | $ 1.33 | |||
| 100 | $ 1.24 | |||
| 500 | $ 1.04 | |||
| 1000 | $ 0.97 | |||
| 5000 | $ 0.82 | |||
| Digi-Reel® | 1 | $ 2.02 | ||
| 5 | $ 1.70 | |||
| 10 | $ 1.58 | |||
| 25 | $ 1.43 | |||
| 50 | $ 1.33 | |||
| 100 | $ 1.24 | |||
| 500 | $ 1.04 | |||
| 1000 | $ 0.97 | |||
| 5000 | $ 0.82 | |||
| Tape & Reel (TR) | 10000 | $ 0.76 | ||
Description
General part information
BMA530 Series
Accelerometer X, Y, Z Axis ±2g, 4g, 8g, 16g 1.56Hz ~ 6.4kHz 6-WLCSP (1.2x0.8)
