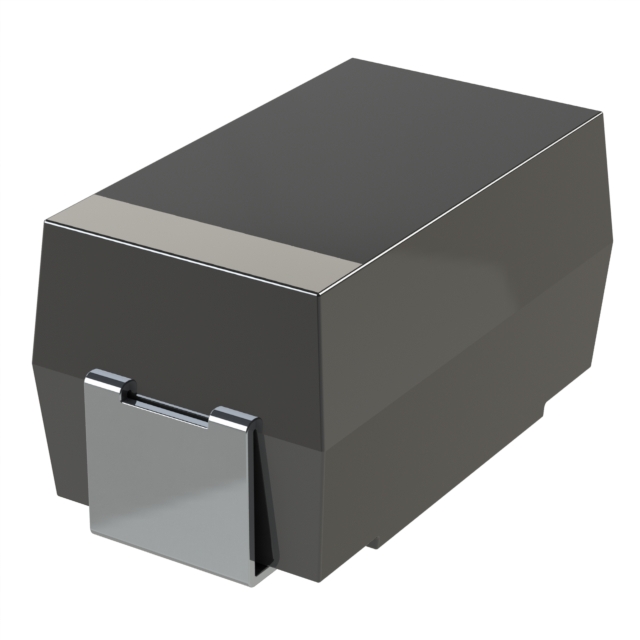

TCJ5337M016R0100
ActiveKyocera AVX
CAP TANT POLY 330UF 16V 2917
Deep-Dive with AI
Search across all available documentation for this part.
TCJ5337M016R0100
ActiveKyocera AVX
CAP TANT POLY 330UF 16V 2917
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TCJ5337M016R0100 |
|---|---|
| Capacitance | 330 µF |
| ESR (Equivalent Series Resistance) | 100 mOhm |
| Features | General Purpose |
| Height - Seated (Max) [Max] | 0.157 in |
| Height - Seated (Max) [Max] | 4 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Manufacturer Size Code | 5 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 7343 Metric |
| Package / Case | 2917 |
| Size / Dimension [x] | 0.287 " |
| Size / Dimension [x] | 7.3 mm |
| Size / Dimension [y] | 4.3 mm |
| Size / Dimension [y] | 0.169 " |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.27 | |
| 10 | $ 2.51 | |||
| 50 | $ 2.27 | |||
| 100 | $ 1.95 | |||
| Digi-Reel® | 1 | $ 3.27 | ||
| 10 | $ 2.51 | |||
| 50 | $ 2.27 | |||
| 100 | $ 1.95 | |||
| Tape & Reel (TR) | 400 | $ 1.69 | ||
| 800 | $ 1.45 | |||
| 1200 | $ 1.42 | |||
| 2000 | $ 1.37 | |||
| 4000 | $ 1.34 | |||
Description
General part information
TCJ5 Series
330 µF Molded Tantalum Polymer Capacitor 16 V 2917 (7343 Metric) 100mOhm @ 100kHz
