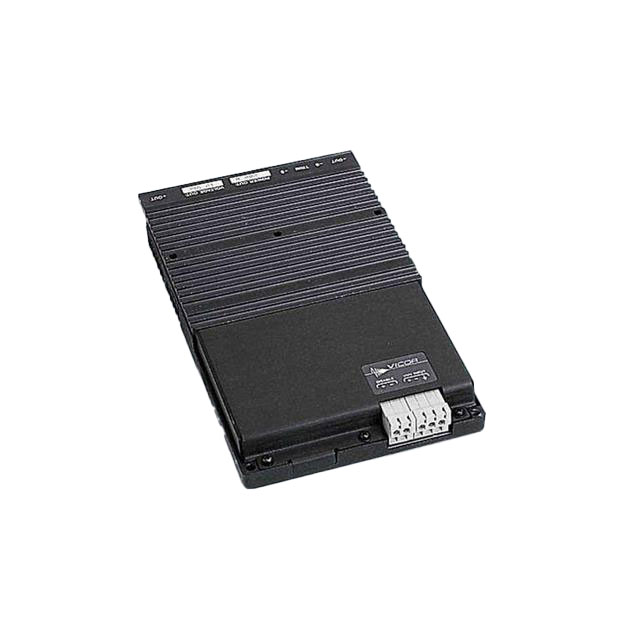

MI-RC601L-IWWW
ActiveVicor Corporation
DC/DC CNVRT 270V 5V 12V 28V 100W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MI-RC601L-IWWW
ActiveVicor Corporation
DC/DC CNVRT 270V 5V 12V 28V 100W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MI-RC601L-IWWW |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 8.33 A, 20 A, 3.57 A |
| Efficiency | 81 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 300 W |
| Size / Dimension [x] | 8.6 " |
| Size / Dimension [x] | 218.4 mm |
| Size / Dimension [y] | 7.3 in |
| Size / Dimension [y] | 185.4 mm |
| Size / Dimension [z] | 0.99 " |
| Size / Dimension [z] | 25.2 mm |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 400 V |
| Voltage - Input (Min) [Min] | 125 V |
| Voltage - Isolation | 4.242 kV |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 12 V |
| Voltage - Output 3 | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2728.30 | |
Description
General part information
MI-RC601L Series
Enclosed DC DC Converter 3 Output 5V 12V 28V 20A, 8.33A, 3.57A 400V Input
