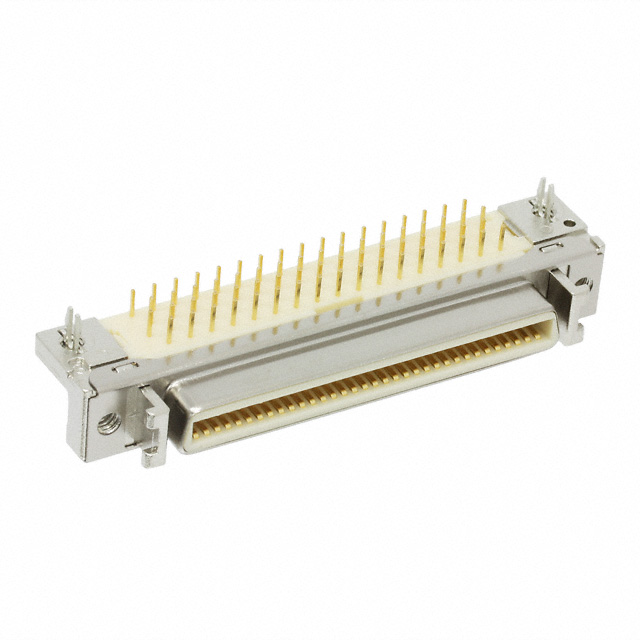

N10268-52E3PC

Active

3M (TC)

JE150333613 N10268-52E3PC=68/MDR/RC/RA/RECP/HITEMP/4-40/.11TAIL/30MIN

Search across all available documentation for this part.

Active

3M (TC)

JE150333613 N10268-52E3PC=68/MDR/RC/RA/RECP/HITEMP/4-40/.11TAIL/30MIN

Technical Specifications

Parameters and characteristics for this part

Specification	N10268-52E3PC

Connector Style	Outer Shroud Contacts
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Shielded, Board Lock
Flange Feature	Housing/Shell (4-40), Latchblocks
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	68
Number of Rows	2
Termination	Solder

Part	Number of Positions	Flange Feature	Mounting Type	Number of Rows	Contact Finish	Connector Style	Features	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Termination	Flange Feature
3M (TC) N10268-5243PC	68	Housing/Shell (4-40) Latchblocks	Panel Mount Right Angle Through Hole	2	Gold	Outer Shroud Contacts	Shielded	0.76 Ám	30 Áin	Receptacle	Solder
3M (TC) N10268-52B2VC	68	Housing/Shell	Panel Mount Right Angle Through Hole	2	Gold	Outer Shroud Contacts	Board Lock Shielded	0.76 Ám	30 Áin	Receptacle	Solder	2.6 M
3M (TC) N10268-52E3PC	68	Housing/Shell (4-40) Latchblocks	Panel Mount Right Angle Through Hole	2	Gold	Outer Shroud Contacts	Board Lock Shielded	0.76 Ám	30 Áin	Receptacle	Solder
3M (TC) N10268-6212PC	68	Housing/Shell (M2.5) Latchblocks	Panel Mount Through Hole	2	Gold	Outer Shroud Contacts	Shielded	0.76 Ám	30 Áin	Receptacle	Solder
3M (TC) N10268-52B2PC	68	Housing/Shell	Panel Mount Right Angle Through Hole	2	Gold	Outer Shroud Contacts	Board Lock Shielded	0.76 Ám	30 Áin	Receptacle	Solder	2.6 M
