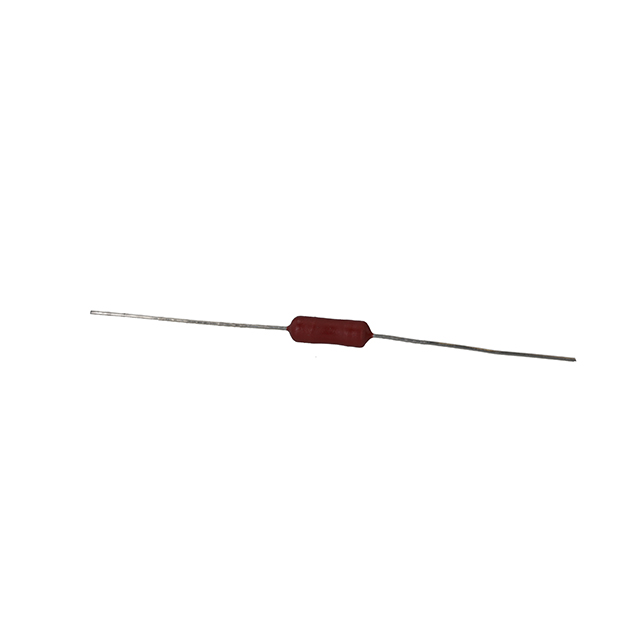

TXF-10A
ActiveOptiFuse
FUSE BOARD MNT 10A 350VDC AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TXF-10A
ActiveOptiFuse
FUSE BOARD MNT 10A 350VDC AXIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TXF-10A |
|---|---|
| Approval Agency | UL 248 |
| Breaking Capacity @ Rated Voltage | 50 A |
| Current Rating (Amps) | 10 A |
| Fuse Type | Board Mount |
| Melting I²t | 297.8 |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Response Time | Slow Blow |
| Size / Dimension [diameter] | 0.16 in |
| Size / Dimension [diameter] | 4 mm |
| Size / Dimension [x] | 12 mm |
| Size / Dimension [x] | 0.47 in |
| Voltage Rating - AC | 350 V |
| Voltage Rating - DC | 350 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 0.79 | |
| 10 | $ 0.75 | |||
| 25 | $ 0.70 | |||
| 50 | $ 0.61 | |||
| 100 | $ 0.57 | |||
| 250 | $ 0.53 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.48 | |||
Description
General part information
TXF Series
10 A 350 V AC 350 V DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Axial
