Q5-2X-1 1/2-01-QB48IN-5

Active

Qualtek

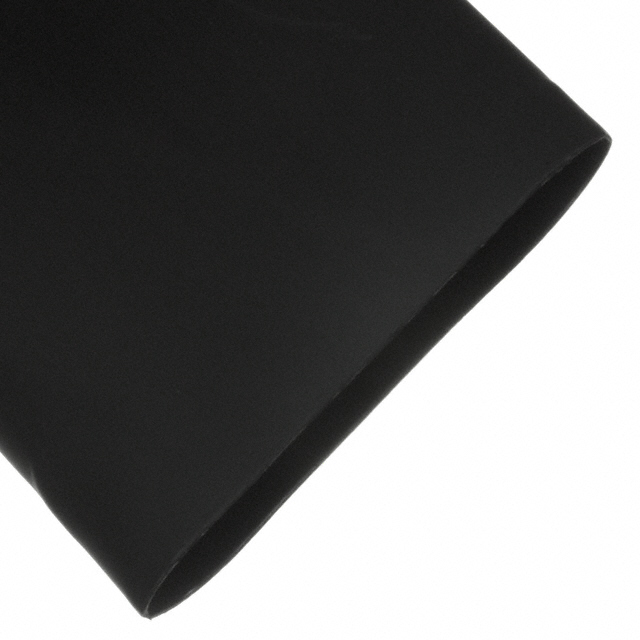

HEATSHRINK 1-1/2" X 4' BLK 1=1PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPart Numbering Guide Datasheet

Q5-2X-1 1/2-01-QB48IN-5

Active

Qualtek

HEATSHRINK 1-1/2" X 4' BLK 1=1PC

Deep-Dive with AI

DocumentsPart Numbering Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q5-2X-1 1/2-01-QB48IN-5

Color	Black
Features	Self Extinguishing, Adhesive Lined
Inner Diameter - Recovered [diameter]	19.05 mm
Inner Diameter - Recovered [diameter]	0.75 "
Inner Diameter - Supplied [diameter]	38.1 mm
Inner Diameter - Supplied [diameter]	1.5 in
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-45 °C
Recovered Wall Thickness	0.043 in
Recovered Wall Thickness	1.09 mm
Shelf Life	60 Months
Shrink Temperature	100 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Q5-2X-1 Series

Part	Length [x]	Length [x]	Color	Type	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Material	Shelf Life	Shrink Temperature	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Shrinkage Ratio	Features	Length	Length	Length	Length
Qualtek Q5-2X-1-01-QB48IN-5	1.22 m	4 ft	Black	Tubing Flexible	0.5 in	12.7 mm	Polyolefin (PO)	60 Months	100 °C	1 in	25.4 mm	-50 °F -10 °C	40 °C	0.043 in	1.09 mm	125 °C	-45 °C	2 to 1	Adhesive Lined Self Extinguishing
Qualtek Q5-2X-1 1/2-01-QB6IN-5			Black	Tubing Flexible	0.75 "	19.05 mm	Polyolefin (PO)	60 Months	100 °C	1.5 in	38.1 mm	-50 °F -10 °C	40 °C	0.043 in	1.09 mm	125 °C	-45 °C	2 to 1	Adhesive Lined Self Extinguishing	152.4 mm	6 "	0.5 '
Qualtek Q5-2X-1-01-SS25M			Black	Tubing Flexible	0.5 in	12.7 mm	Polyolefin (PO)	60 Months	100 °C	1 in	25.4 mm	-50 °F -10 °C	40 °C	0.043 in	1.09 mm	125 °C	-45 °C	2 to 1	Adhesive Lined Self Extinguishing	25 m			82 ft
Qualtek Q5-2X-1-01-QB6IN-8			Black	Tubing Flexible	0.5 in	12.7 mm	Polyolefin (PO)	60 Months	100 °C	1 in	25.4 mm	-50 °F -10 °C	40 °C	0.043 in	1.09 mm	125 °C	-45 °C	2 to 1	Adhesive Lined Self Extinguishing	152.4 mm	6 "	0.5 '
Qualtek Q5-2X-1 1/2-01-QB48IN-5	1.22 m	4 ft	Black	Tubing Flexible	0.75 "	19.05 mm	Polyolefin (PO)	60 Months	100 °C	1.5 in	38.1 mm	-50 °F -10 °C	40 °C	0.043 in	1.09 mm	125 °C	-45 °C	2 to 1	Adhesive Lined Self Extinguishing
Qualtek Q5-2X-1 1/2-01-SS25M			Black	Tubing Flexible	0.75 "	19.05 mm	Polyolefin (PO)	60 Months	100 °C	1.5 in	38.1 mm	-50 °F -10 °C	40 °C	0.043 in	1.09 mm	125 °C	-45 °C	2 to 1	Adhesive Lined Self Extinguishing	25 m			82 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.28
		5	$ 13.63
		10	$ 10.38
		25	$ 9.74
		50	$ 9.09
		100	$ 8.63

Description

General part information

Q5-2X-1 Series

Heat Shrink Tubing, Flexible 1.500" (38.10mm) 2 to 1 Black 4.00' (1.22m)

Documents

Technical documentation and resources

Part Numbering Guide

Datasheet
