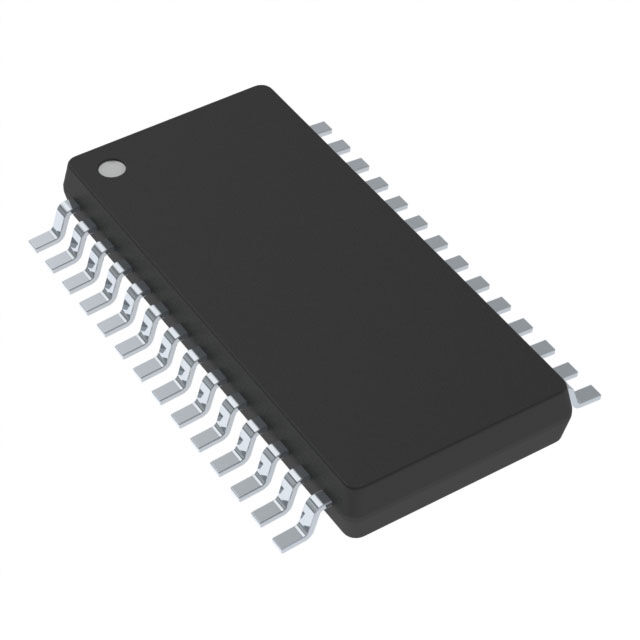

IS32FL3209-ZLA3
UnknownLumissil Microsystems
IC LED DRV LIN PWM 78MA 28ETSSOP
Deep-Dive with AI
Search across all available documentation for this part.
IS32FL3209-ZLA3
UnknownLumissil Microsystems
IC LED DRV LIN PWM 78MA 28ETSSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IS32FL3209-ZLA3 |
|---|---|
| Current - Output / Channel | 78 mA |
| Dimming | PWM |
| Grade | Automotive |
| Internal Switch(s) | False |
| Mounting Type | Surface Mount |
| Number of Outputs | 18 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Exposed Pad, 28-TSSOP |
| Package / Case [custom] | 4.4 mm |
| Package / Case [x] | 0.173 in |
| Qualification | AEC-Q100 |
| Supplier Device Package | 28-eTSSOP |
| Topology | Constant Current |
| Type | Linear |
| Voltage - Supply (Max) | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IS32FL3209 Series
LED Driver IC 18 Output Linear Constant Current PWM Dimming 78mA 28-eTSSOP
Documents
Technical documentation and resources
No documents available
