LUF400NFNM3.0F
ActiveAmphenol Times Microwave Systems

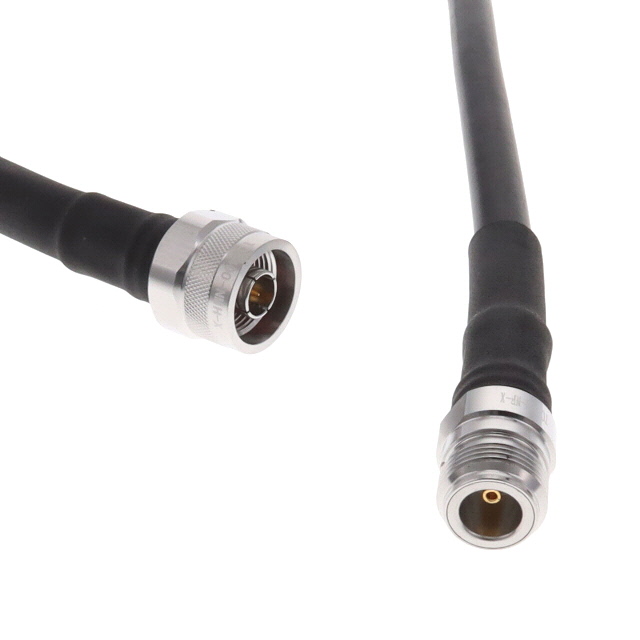

CBL ASSY NTYPE JACK TO PLUG 36"
Deep-Dive with AI
Search across all available documentation for this part.
LUF400NFNM3.0F
ActiveAmphenol Times Microwave Systems
CBL ASSY NTYPE JACK TO PLUG 36"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LUF400NFNM3.0F |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR 240 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 2.5 GHz |
| Length | 91.44 cm |
| Length | 36 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LUF400N Series
Cable Assembly Coaxial N-Type to N-Type LMR 240 36.00" (914.40mm)
