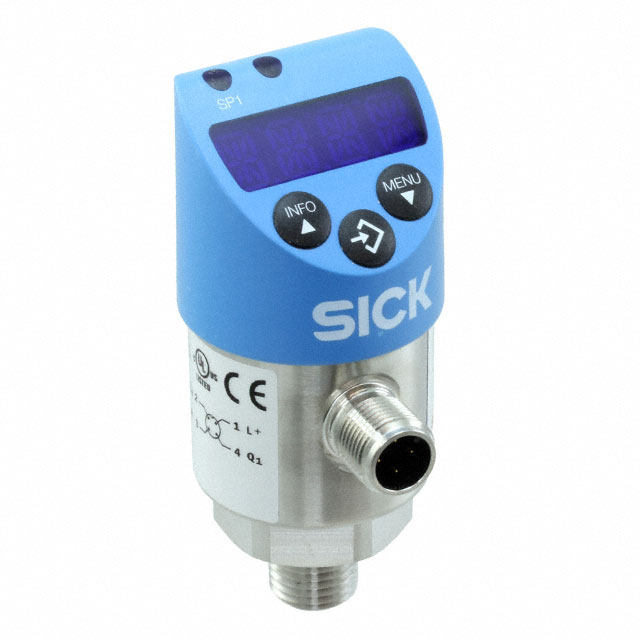

6050310
ActiveSICK, Inc.
PRESSURE TRANS 0-5000 PSI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6050310
ActiveSICK, Inc.
PRESSURE TRANS 0-5000 PSI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6050310 |
|---|---|
| Accuracy | 1 % |
| Applications | Industrial Automation |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Output [Max] | 20 mA |
| Output [Min] | 4 mA |
| Package / Case | Module |
| Port Size | NPT, Female |
| Port Size | 0.25 " |
| Port Size | 6.35 mm |
| Port Style | Threaded |
| Pressure Type | Gauge |
| Termination Style | Connector |
| Voltage - Supply [Max] | 35 V |
| Voltage - Supply [Min] | 15 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 302.40 | |
Description
General part information
PBS-RP5K0 Series
PRESSURE TRANS 0-5000 PSI
Documents
Technical documentation and resources
