19400061118

Active

HARTING Technology Group

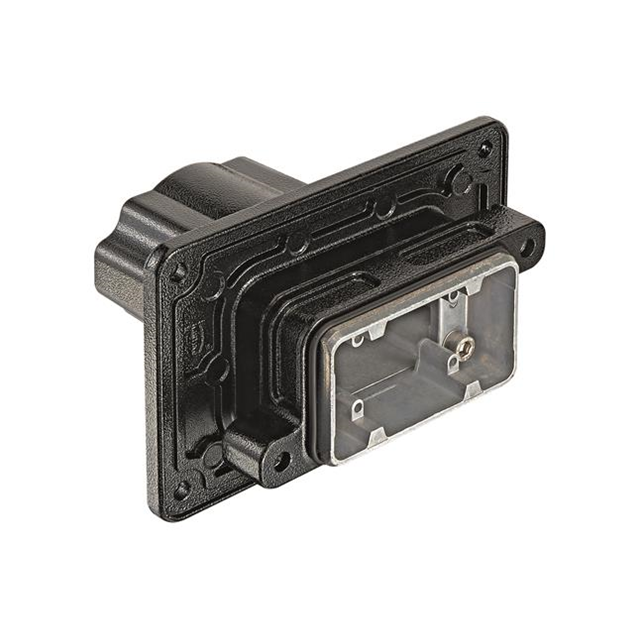

6B HPR PANEL FEED THROUGH HOUSING, SCREW LOCKING, OUTSIDE MOUNTING, 1XM40

Search across all available documentation for this part.

Active

HARTING Technology Group

6B HPR PANEL FEED THROUGH HOUSING, SCREW LOCKING, OUTSIDE MOUNTING, 1XM40

Technical Specifications

Parameters and characteristics for this part

Part	Housing Material	Housing Color	Features	Lock Location	Style	Housing Finish	Connector Type	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Size	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
HARTING Technology Group 19400061117	Aluminum Die Cast	Black	Corrosion Resistant	Screw Locks on Hood	Top Entry	Powder Coated	Base - Panel Mount	M32	125 °C	-40 °C	6B
HARTING Technology Group 19400061262	Aluminum Die Cast	Black		Screw Locks on Hood	Side Entry	Powder Coated	Base - Box Mount	M32	125 °C	-40 °C	6B
HARTING Technology Group 19400061213	Aluminum Die Cast	Black	Corrosion Resistant	Screw Locks on Hood	Top Entry	Powder Coated	Base - Panel Mount		125 °C	-40 °C	6B	100.1 mm	6.102 in	3.941 in	155 mm	3.15 in	80 mm
HARTING Technology Group 19400061118	Aluminum Die Cast	Black	Corrosion Resistant	Screw Locks on Hood	Top Entry		Base - Panel Mount	M32 M40	125 °C	-40 °C	6B	117.5 mm	6.378 in	4.626 in	162 mm	4.173 in	106 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 268.32
Newark	Each	1	$ 194.46
		10	$ 185.26
		25	$ 178.69
TME	N/A	1	$ 206.71
		3	$ 175.70
		5	$ 145.73

General part information

Base - Panel Mount Connector Top Entry M32 and M40 6B IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
