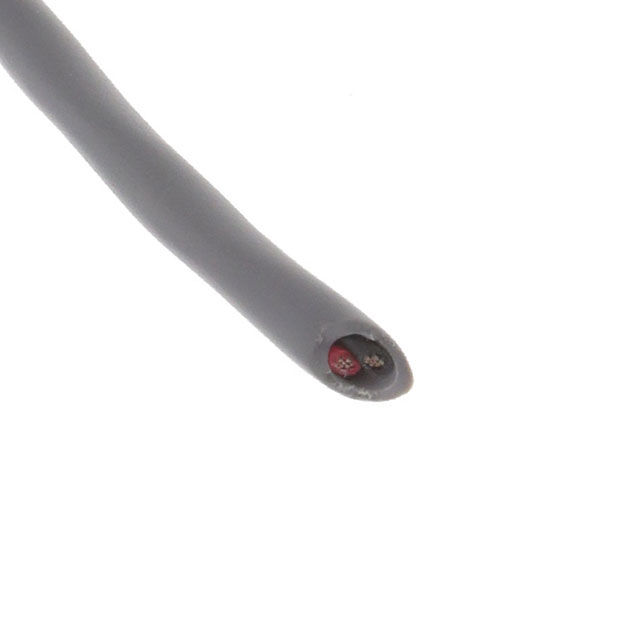

M39071 SL005

Active

ALPHA WIRE

CABLE 2COND 22AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 22AWG SLATE

Technical Specifications

Parameters and characteristics for this part

Specification	M39071 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	5.16 mm
Jacket (Insulation) Diameter [diameter]	0.203 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.038 in
Jacket (Insulation) Thickness	0.965 mm
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Voltage	300 V
Wire Gauge	22 AWG

Part	Number of Conductors	Wire Gauge	Voltage	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Cable Type	Length [x]	Length [x]	Jacket (Insulation) Material	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length
ALPHA WIRE M39071 SL005	2	22 AWG	300 V	Poly-Vinyl Chloride (PVC)	28	7	0.038 in	0.965 mm	5.16 mm	0.203 in	Slate	Multi-Conductor	30.5 m	100 ft	Poly-Vinyl Chloride (PVC)	Copper Tinned	-20 C	105 ░C
ALPHA WIRE M39071 SL001	2	22 AWG	300 V	Poly-Vinyl Chloride (PVC)	28	7	0.038 in	0.965 mm	5.16 mm	0.203 in	Slate	Multi-Conductor			Poly-Vinyl Chloride (PVC)	Copper Tinned	-20 C	105 ░C	1000 ft	304.8 m
ALPHA WIRE M39071 SL199	2	22 AWG	300 V	Poly-Vinyl Chloride (PVC)	28	7	0.038 in	0.965 mm	5.16 mm	0.203 in	Slate	Multi-Conductor			Poly-Vinyl Chloride (PVC)	Copper Tinned	-20 C	105 ░C	3000 ft	914.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 0.72

General part information

2 Conductor Multi-Conductor Cable Slate 22 AWG 100.0' (30.5m)
