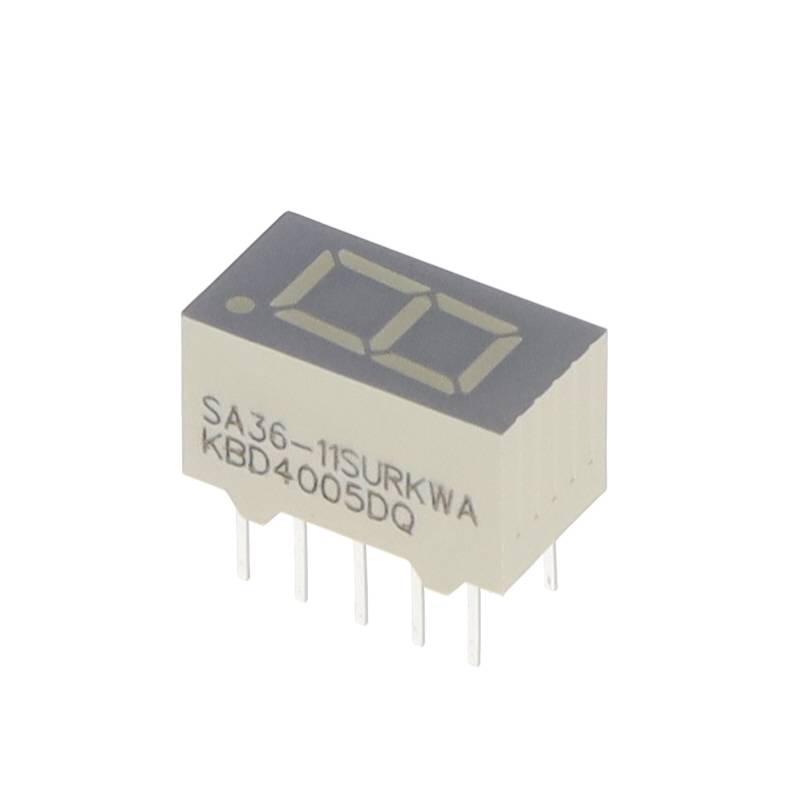

SA36-11SURKWA
ActiveKingbright
SMART/NORMAL 7 SEG NUMERIC LED DISPLAY, HYPER RED, 9.14MM, ROHS COMPLIANT PACKAGE-10
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SA36-11SURKWA
ActiveKingbright
SMART/NORMAL 7 SEG NUMERIC LED DISPLAY, HYPER RED, 9.14MM, ROHS COMPLIANT PACKAGE-10
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SA36-11SURKWA |
|---|---|
| Color | Red |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 0.36 in |
| Digit/Alpha Size | 9.14 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 28 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 10-DIP |
| Package / Case | 0.2 in |
| Package / Case | 0.2 in |
| Power Dissipation (Max) [Max] | 75 mw |
| Size / Dimension | 14 mm, 7.5 mm, 8.5 mm |
| Size / Dimension [x] | 0.551 in |
| Size / Dimension [y] | 0.295 in |
| Size / Dimension [z] | 0.335 " |
| Voltage - Forward (Vf) (Typ) | 1.95 V |
| Wavelength - Peak | 645 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.22 | |
| 36 | $ 1.48 | |||
| 108 | $ 1.14 | |||
| 504 | $ 1.03 | |||
| 1008 | $ 0.89 | |||
| 2016 | $ 0.84 | |||
| 5004 | $ 0.82 | |||
| 10008 | $ 0.81 | |||
Description
General part information
SA36-11 Series
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.95V 20mA 0.551" H x 0.295" W x 0.335" D (14.00mm x 7.50mm x 8.50mm) 10-DIP (0.200", 5.08mm)
