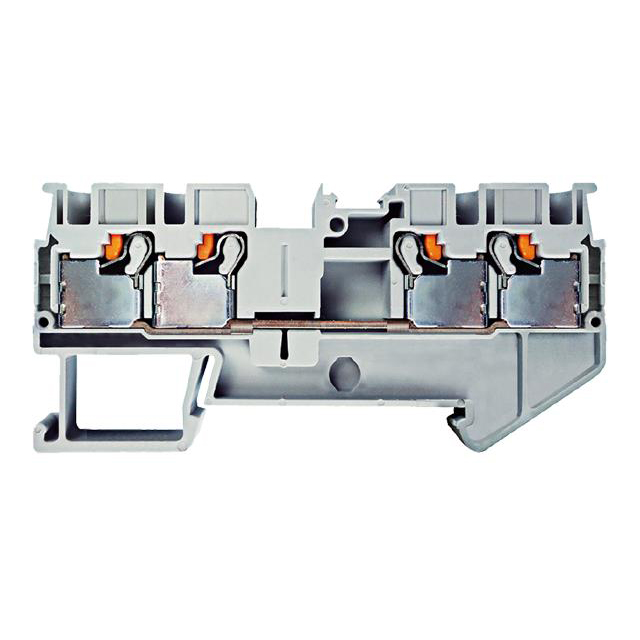

DPT4/4

Active

MEAN WELL USA Inc.

4MM/4 CONNECTION/GRAY/PUSH IN

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

4MM/4 CONNECTION/GRAY/PUSH IN

Technical Specifications

Parameters and characteristics for this part

Specification	DPT4/4

Color	Gray
Current - IEC	32 A
Current - UL	30 A
Material - Insulation	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Number of Levels	1
Number of Positions	4
Stripping Length [Max]	12 mm
Stripping Length [Min]	8 mm
Terminal - Width [y]	6.2 mm
Termination Style	Push In
Type	Feed Through
Voltage - IEC	800 V
Voltage - UL	600 V
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	10 AWG
Wire Gauge or Range - mm² [Max]	4 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²

Part	Current - UL	Termination Style	Number of Positions	Color	Number of Levels	Voltage - IEC	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Stripping Length [Max]	Stripping Length [Min]	Voltage - UL	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Terminal - Width [y]	Type	Material Flammability Rating	Current - IEC	Material - Insulation
MEAN WELL USA Inc. DPT4/4	30 A	Push In	4	Gray	1	800 V	10 AWG	24 AWG	12 mm	8 mm	600 V	0.2 mm²	4 mm²	6.2 mm	Feed Through	UL94 V-0	32 A	Polyamide (PA66) Nylon 6/6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 4.00

General part information

Terminal Block Connector 4 Position Feed Through Gray 10-24 AWG
