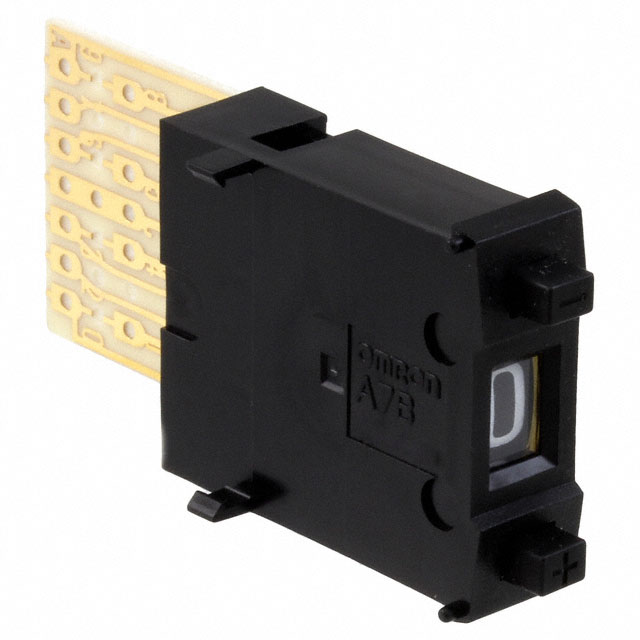

A7BS-203-1
ObsoleteOmron Electronics Inc-EMC Div
THUMBWHEEL SWITCHES & PUSHWHEEL SWITCHES THUMBWHEEL SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
A7BS-203-1
ObsoleteOmron Electronics Inc-EMC Div
THUMBWHEEL SWITCHES & PUSHWHEEL SWITCHES THUMBWHEEL SWITCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A7BS-203-1 |
|---|---|
| Actuator Type | Pushwheel |
| Color | Black |
| Contact Rating @ Voltage [x] | 28 VDC, 50 VAC, 0.1 A |
| Depth Behind Flange [z] | 32.5 mm |
| Display Characters - Height [z] | 4.8 mm |
| Display Characters - Height [z] | 0.189 in |
| Electrical Life | 50000 Cycles |
| End Caps | Sold Separately |
| Mounting Type | Panel Mount, Snap-In |
| Number of Sections | 1 |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -10 °C |
| Output Code | Decimal |
| Read Out [Max] | 9 |
| Read Out [Min] | 0 |
| Section Width [x] | 8 mm |
| Section Width [x] | 0.315 in |
| Termination Style | Solder Pad, Card Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
A7BS/A7BL Series
Thumbwheel Switches & Pushwheel Switches THUMBWHEEL SWITCH
