C28PC,GY

Active

Serpac

BOX ABS GRAY 5"L X 1.85"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 5"L X 1.85"W

Technical Specifications

Parameters and characteristics for this part

Specification	C28PC,GY

Area (L x W)	9.25 in˛
Area (L x W)	59.7 cm˛
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	Pocket Clip
Height [z]	1 in
Height [z]	25.4 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	46.99 mm
Size / Dimension [y]	1.85 "
Thickness	0.09 in
Thickness	2.29 mm
Weight	0.091 lb
Weight	41.28 g

Part	Height [z]	Height [z]	Color	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Ratings	Area (L x W) [custom]	Area (L x W) [custom]	Design	Features	Weight	Weight	Material Flammability Rating	Material	Thickness	Thickness	Container Type	Area (L x W)	Area (L x W)
Serpac C28PC,AL	1 in	25.4 mm	Almond	46.99 mm	1.85 "	5 in	127 mm	IP40	9.25 in²	59.7 cm²	Hand Held Split Sides	Pocket Clip	0.091 lb	41.28 g	UL94 HB	Plastic ABS	0.09 in	2.29 mm	Box
Serpac C28PC,GY	1 in	25.4 mm	Gray	46.99 mm	1.85 "	5 in	127 mm	IP40			Hand Held Split Sides	Pocket Clip	0.091 lb	41.28 g	UL94 HB	Plastic ABS	0.09 in	2.29 mm	Box	9.25 in˛	59.7 cm˛
Serpac C28PC,BK	1 in	25.4 mm	Black	46.99 mm	1.85 "	5 in	127 mm	IP40	9.25 in²	59.7 cm²	Hand Held Split Sides	Pocket Clip	0.091 lb	41.28 g	UL94 HB	Plastic ABS	0.09 in	2.29 mm	Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.82

General part information

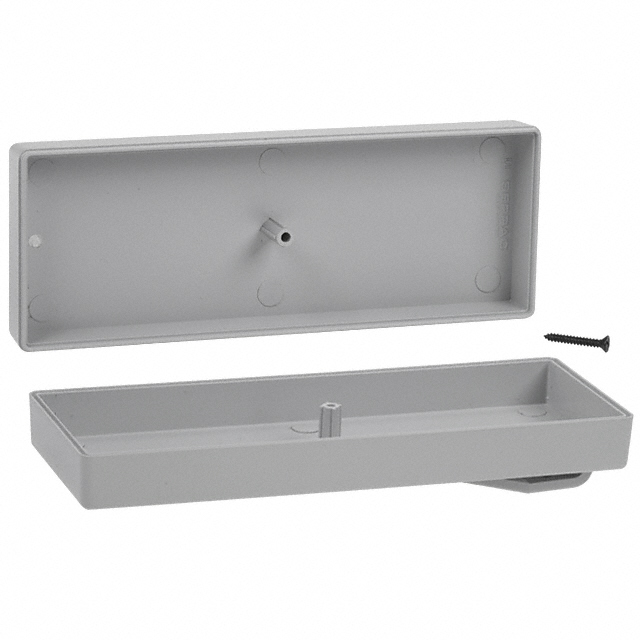

Box Plastic, ABS Gray Hand Held, Split Sides 5.000" L x 1.850" W (127.00mm x 46.99mm) X 1.000" (25.40mm)

Technical documentation and resources
