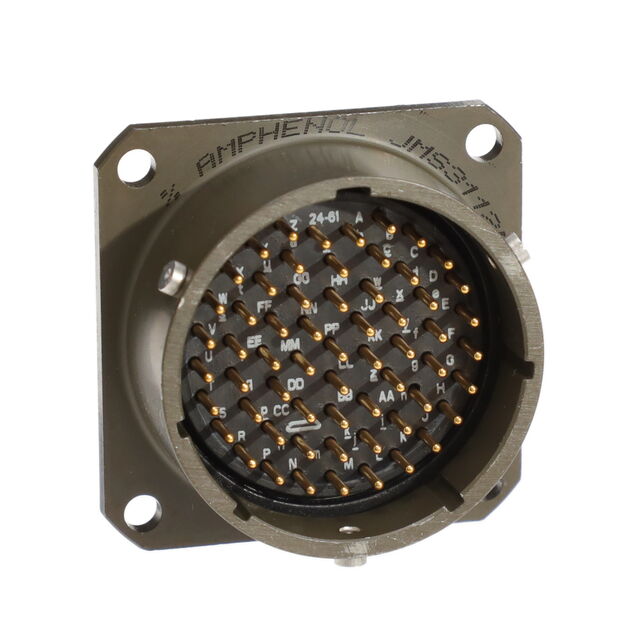

MS3112E24-61P

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	MS3112E24-61P

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	61
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	61
Shell Size - Insert [Min]	24
Shielding	Unshielded
Voltage Rating	600 VAC

Part	Contact Material	Grade	Applications	Ingress Protection	Shell Material	Mounting Feature	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Fastening Type	Number of Positions	Current Rating (Amps)	Shell Finish	Primary Material	Color	Insert Material	Voltage Rating	Contact Finish - Mating	Orientation	Shielding	Qualification	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol Industrial Operations MS3112E24-61P	Copper Alloy	Military	Aerospace Industrial Instrumentation Mass Transit Military	Environment Resistant	Aluminum	Flange	61	24	Bayonet Lock	61	7.5 A	Olive Drab Chromate over Cadmium	Metal	Olive Drab	Neoprene	600 VAC	Gold	N	Unshielded	MIL-DTL-26482 Series I	Male Pins Receptacle	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

61 Position Circular Connector Receptacle, Male Pins Solder Cup
