125SH-A-03-TS-SMT

Active

Adam Tech

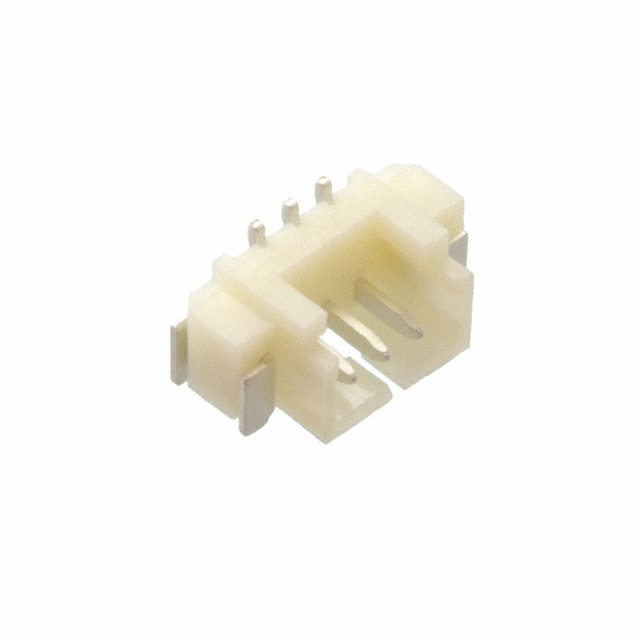

CONN HEADER SMD 3POS 1.25MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

125SH-A-03-TS-SMT

Active

Adam Tech

CONN HEADER SMD 3POS 1.25MM

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	125SH-A-03-TS-SMT

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	2.5 mm
Contact Length - Mating	0.098 "
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Features	Solder Retention
Insulation Color	Black
Insulation Height	4.6 mm
Insulation Height	0.181 in
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

125SH-A Series

Part	Shrouding	Termination	Voltage Rating	Contact Finish - Post	Style	Mounting Type	Pitch - Mating	Pitch - Mating	Insulation Color	Fastening Type	Material Flammability Rating	Contact Material	Connector Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Rows	Contact Shape	Number of Positions	Features	Contact Length - Mating	Contact Length - Mating	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]
Adam Tech 125SH-A-05-TS	Shrouded - 4 Wall	Solder	125 VAC	Tin	Board to Cable/Wire	Through Hole	1.25 mm	0.049 in	Natural	Friction Lock	UL94 V-0	Phosphor Bronze	Header	0.185 in	4.7 mm	0.091 in	2.3 mm	All	85 °C	-40 °C	Male Blade	1	Rectangular
Adam Tech 125SH-A-10-TS	Shrouded - 4 Wall	Solder	125 VAC	Tin	Board to Cable/Wire	Through Hole	1.25 mm	0.049 in	Natural	Friction Lock	UL94 V-0	Phosphor Bronze	Header	0.185 in	4.7 mm	0.091 in	2.3 mm	All	85 °C	-40 °C	Male Blade	1	Rectangular	10
Adam Tech 125SH-A-03-TS-SMT	Shrouded - 4 Wall	Solder	250 VAC	Tin	Board to Cable/Wire	Surface Mount	1.25 mm	0.049 in	Black	Friction Lock	UL94 V-0	Brass	Header	0.181 in	4.6 mm			All	85 °C	-40 °C	Male Pin	1	Square		Solder Retention	2.5 mm	0.098 "
Adam Tech 125SH-A-03-TR	Shrouded - 4 Wall	Solder	250 VAC	Tin	Board to Cable/Wire	Through Hole Right Angle	1.25 mm	0.049 in	Black	Friction Lock	UL94 V-0	Brass	Header	0.13 in	3.3 mm			All	85 °C	-25 °C	Male Pin	1	Square			2.5 mm	0.098 "	Polyamide (PA46) Nylon 4/6	2.2 mm	0.087 in
Adam Tech 125SH-A-04-TS	Shrouded - 4 Wall	Solder	125 VAC	Tin	Board to Cable/Wire	Through Hole	1.25 mm	0.049 in	Natural	Friction Lock	UL94 V-0	Phosphor Bronze	Header	0.185 in	4.7 mm	0.091 in	2.3 mm	All	85 °C	-40 °C	Male Blade	1	Rectangular	4
Adam Tech 125SH-A-02-TS	Shrouded - 4 Wall	Solder	125 VAC	Tin	Board to Cable/Wire	Through Hole	1.25 mm	0.049 in	Natural	Friction Lock	UL94 V-0	Phosphor Bronze	Header	0.185 in	4.7 mm	0.091 in	2.3 mm	All	85 °C	-40 °C	Male Blade	1	Rectangular	2
Adam Tech 125SH-A-05-TR	Shrouded - 4 Wall	Solder	250 VAC	Tin	Board to Cable/Wire	Through Hole Right Angle	1.25 mm	0.049 in	Black	Friction Lock	UL94 V-0	Brass	Header	0.13 in	3.3 mm			All	85 °C	-25 °C	Male Pin	1	Square			2.5 mm	0.098 "	Polyamide (PA46) Nylon 4/6	2.2 mm	0.087 in
Adam Tech 125SH-A-07-TS	Shrouded - 4 Wall	Solder	125 VAC	Tin	Board to Cable/Wire	Through Hole	1.25 mm	0.049 in	Natural	Friction Lock	UL94 V-0	Phosphor Bronze	Header	0.185 in	4.7 mm	0.091 in	2.3 mm	All	85 °C	-40 °C	Male Blade	1	Rectangular	7
Adam Tech 125SH-A-05-TS-SMT	Shrouded - 4 Wall	Solder	250 VAC	Tin	Board to Cable/Wire	Surface Mount	1.25 mm	0.049 in	Black	Friction Lock	UL94 V-0	Brass	Header	0.181 in	4.6 mm			All	85 °C	-40 °C	Male Pin	1	Square		Solder Retention	2.5 mm	0.098 "
Adam Tech 125SH-A-09-TS-SMT	Shrouded - 4 Wall	Solder	250 VAC	Tin	Board to Cable/Wire	Surface Mount	1.25 mm	0.049 in	Black	Friction Lock	UL94 V-0	Brass	Header	0.181 in	4.6 mm			All	85 °C	-40 °C	Male Pin	1	Square	9	Solder Retention	2.5 mm	0.098 "
