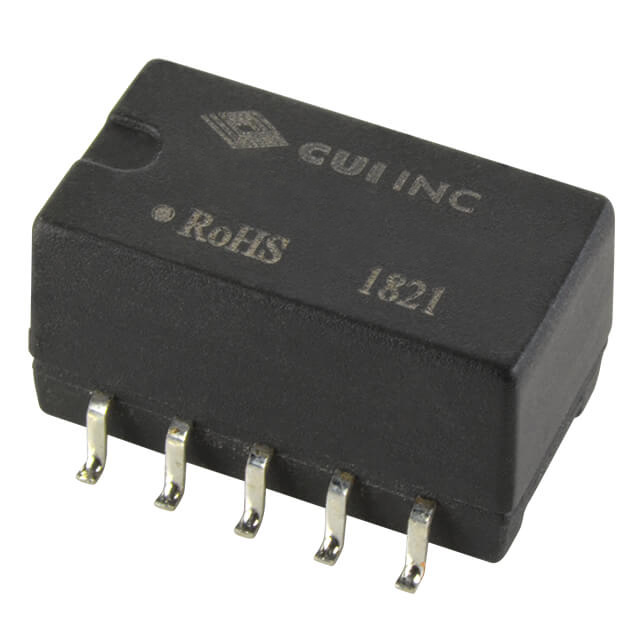

V78E12-500-SMT-TR
CUI Inc.
MODULE DC-DC 24VIN 1-OUT 12V 0.5A 6W 8-PIN SMD MODULE T/R
Deep-Dive with AI
Search across all available documentation for this part.
V78E12-500-SMT-TR
CUI Inc.
MODULE DC-DC 24VIN 1-OUT 12V 0.5A 6W 8-PIN SMD MODULE T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | V78E12-500-SMT-TR |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | 94 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-SMD Module |
| Package / Case | 8 Leads |
| Power (Watts) | 6 W |
| Size / Dimension [x] | 15.2 mm |
| Size / Dimension [x] | 0.6 in |
| Size / Dimension [y] | 0.33 in |
| Size / Dimension [y] | 8.5 mm |
| Size / Dimension [z] | 8.3 mm |
| Size / Dimension [z] | 0.32 " |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 15 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.81 | |
| Digi-Reel® | 1 | $ 2.81 | ||
| Tape & Reel (TR) | 300 | $ 2.69 | ||
Description
General part information
V78E12 Series
Non-Isolated PoL Module DC DC Converter 1 Output 12V 500mA 15V - 36V Input
Documents
Technical documentation and resources
No documents available
