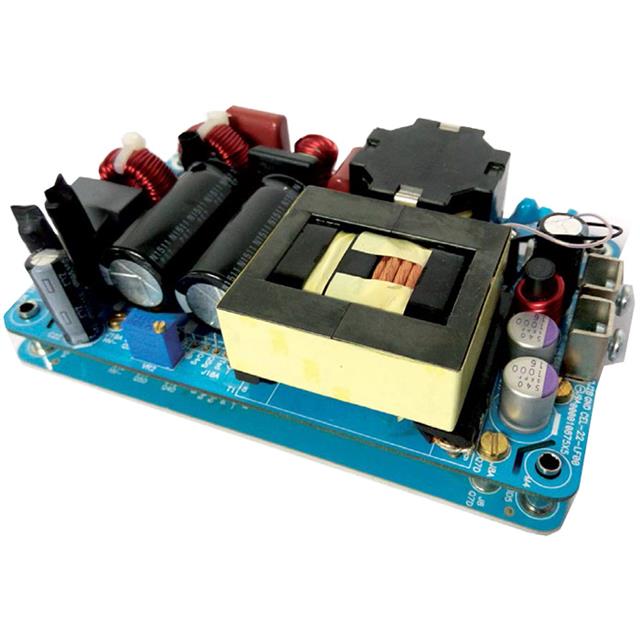

WLC550-1012

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 200W

Deep-Dive with AI

Search across all available documentation for this part.

WLC550-1012

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 200W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WLC550-1012

Applications	ITE (Commercial)
Approval Agency	cUL, CE, UL, CB, NEMKO
Current - Output 1	16.67 A
Efficiency	90 %
Features	Universal Input, Adjustable Output, PFC, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	200 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	38.1 mm
Size / Dimension [z]	1.5 "
Standard Number	62368-1
Type	Open Frame
Voltage - Input	390 VDC
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

WLC550 Series

Part	Applications	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Input	Power (Watts)	Voltage - Isolation	Type	Features	Mounting Type	Standard Number	Approval Agency	Number of Outputs	Efficiency
EOS Power India Private Ltd WLC550-1030	ITE (Commercial)	30 V	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	8.33 A	90 VAC	264 VAC	390 VDC	250 W 550 W	3000 V	Open Frame	Adjustable Output PFC Standby Output Universal Input	Chassis Mount	62368-1	CB CE cUL NEMKO UL	1
EOS Power India Private Ltd WLC550-1012	ITE (Commercial)	12 V	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	16.67 A	90 VAC	264 VAC	390 VDC	200 W	3000 V	Open Frame	Adjustable Output PFC Standby Output Universal Input	Chassis Mount	62368-1	CB CE cUL NEMKO UL	1	90 %
EOS Power India Private Ltd WLC550-1015	ITE (Commercial)	15 V	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	13.33 A	90 VAC	264 VAC	390 VDC	200 W	3000 V	Open Frame	Adjustable Output PFC Standby Output Universal Input	Chassis Mount	62368-1	CB CE cUL NEMKO UL	1	90 %
EOS Power India Private Ltd WLC550-1048	ITE (Commercial)	48 V	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	5.21 A	90 VAC	264 VAC	390 VDC	250 W 550 W	3000 V	Open Frame	Adjustable Output PFC Standby Output Universal Input	Chassis Mount	62368-1	CB CE cUL NEMKO UL	1	92 %
EOS Power India Private Ltd WLC550-1058	ITE (Commercial)		5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	4.31 A	90 VAC	264 VAC	390 VDC	250 W 550 W	3000 V	Open Frame	Adjustable Output PFC Standby Output Universal Input	Chassis Mount	62368-1	CB CE cUL NEMKO UL	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 126.05

Description

General part information

WLC550 Series

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC, 390VDC Input

Documents

Technical documentation and resources

No documents available
