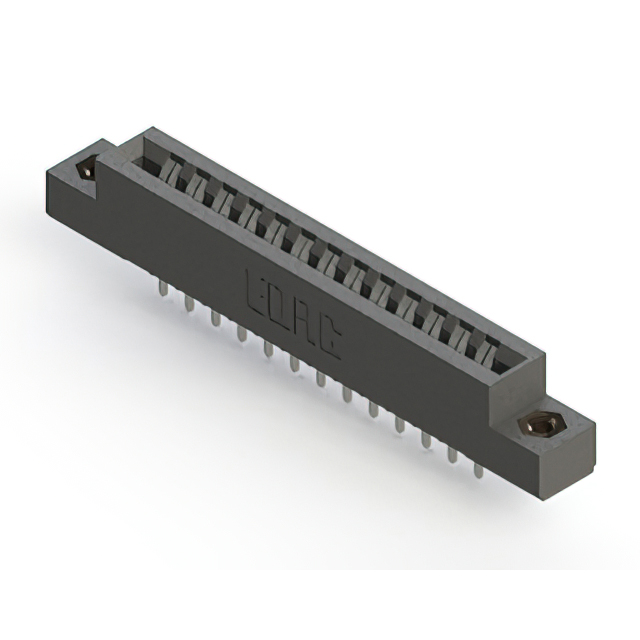

356-013-420-108
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
356-013-420-108
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 356-013-420-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 26 |
| Number of Positions/Bay/Row [custom] | 13 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
356-013 Series
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Termination | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Material - Insulation | Gender | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Mounting Type | Contact Material | Termination Rows | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Contact Finish | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Black | -40 °C | 105 ░C | Dual | Solder | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 26 | Polyester Thermoplastic | Female | Cantilever | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Panel Mount Through Hole | Copper Alloy | 1 | 13 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | 2 | |
EDAC Inc. | Black | -40 °C | 105 ░C | Dual | Solder | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 26 | Polyester Thermoplastic | Female | Cantilever | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | Panel Mount Through Hole | Copper Alloy | 1 | 13 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | 2 | |
EDAC Inc. | Black | -40 °C | 105 ░C | Dual | Solder Eyelet(s) | 0.156 in | 3.96 mm | 26 | Polyester Thermoplastic | Female | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 1 | 13 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Tin | 2 | Card Guides | |||||
EDAC Inc. | Black | -40 °C | 105 ░C | Dual | Solder | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 26 | Polyester Thermoplastic | Female | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Panel Mount Through Hole | Copper Alloy | 1 | 13 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | 2 | Card Guides | ||
EDAC Inc. | Black | -40 °C | 105 ░C | Dual | Solder | 0.156 in | 3.96 mm | 26 | Polyester Thermoplastic | Female | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Panel Mount Through Hole | Copper Alloy | 1 | 13 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Tin | 2 | Card Guides | ||||
EDAC Inc. | Black | -40 °C | 105 ░C | Dual | Solder | 0.156 in | 3.96 mm | 26 | Polyester Thermoplastic | Female | Cantilever | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Panel Mount Through Hole | Copper Alloy | 1 | 13 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Tin | 2 | |||
EDAC Inc. | Black | -40 °C | 105 ░C | Dual | Solder Eyelet(s) | 0.156 in | 3.96 mm | 26 | Polyester Thermoplastic | Female | Cantilever | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Copper Alloy | 1 | 13 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Tin | 2 | ||||
EDAC Inc. | Black | -40 °C | 105 ░C | Dual | Solder | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 26 | Polyester Thermoplastic | Female | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Panel Mount Through Hole | Copper Alloy | 1 | 13 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | 2 | Card Guides | ||
EDAC Inc. | Black | -40 °C | 105 ░C | Dual | Solder | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 26 | Polyester Thermoplastic | Female | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Panel Mount Through Hole | Copper Alloy | 1 | 13 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | 2 | Card Guides | ||
EDAC Inc. | Black | -40 °C | 105 ░C | Dual | Solder | 0.156 in | 3.96 mm | 26 | Polyester Thermoplastic | Female | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Panel Mount Through Hole | Copper Alloy | 1 | 13 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Tin | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
356-013 Series
26 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
