FH34SRJ-20S-0.5SH(50)

Obsolete

Hirose Electric USA, Inc.

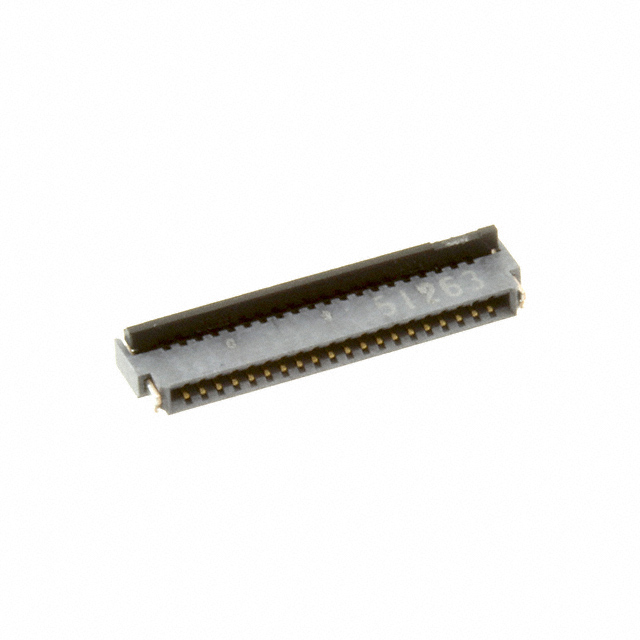

CONN FFC FPC 20POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FH34SRJ-xS-0.5SH(50) Spec

FH34SRJ-20S-0.5SH(50)

Obsolete

Hirose Electric USA, Inc.

CONN FFC FPC 20POS 0.5MM R/A

Deep-Dive with AI

DocumentsDatasheet FH34SRJ-xS-0.5SH(50) Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FH34SRJ-20S-0.5SH(50)

Actuator Color	Black
Actuator Material	Nylon, Polyamide (PA)
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top and Bottom
Contact Finish	Gold
Contact Finish Thickness	1.97 Áin
Contact Finish Thickness	0.05 Ám
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	1 mm
Height Above Board [z]	0.039 in
Housing Color	Gray
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Locking Feature	Backlock, Rotary Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	20
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

FH34SRJ Series

Part	Actuator Color	Locking Feature	Housing Material	Actuator Material	Pitch [x]	Pitch [x]	Contact Material	Mating Cycles	Flat Flex Type	Cable End Type	Height Above Board [z]	Height Above Board [z]	Number of Positions	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Current Rating (Amps)	Mounting Type	Connector/Contact Type	Housing Color	Termination	Contact Finish	FFC, FCB Thickness	Number of Positions	Features	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. FH34SRJ-16S-0.5SH(99)	Black	Backlock Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	Nylon Polyamide (PA)	0.5 mm	0.02 in	Phosphor Bronze	20	FFC FPC	Tapered	1 mm	0.039 in	16	50 V	105 ░C	-55 °C	UL94 V-0	0.5 A	Surface Mount Right Angle	Contacts Top and Bottom	Gray	Solder	Gold	0.3 mm
Hirose Electric USA, Inc. FH34SRJ-24S-0.5SH(99)	Black	Backlock Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	Nylon Polyamide (PA)	0.5 mm	0.02 in	Phosphor Bronze	20	FFC FPC	Tapered	1 mm	0.039 in		50 V	105 ░C	-55 °C	UL94 V-0	0.5 A	Surface Mount Right Angle	Contacts Top and Bottom	Gray	Solder	Gold	0.3 mm	24
Hirose Electric USA, Inc. FH34SRJ-12S-0.5SH(99)	Black	Backlock Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	Nylon Polyamide (PA)	0.5 mm	0.02 in	Phosphor Bronze	20	FFC FPC	Tapered	1 mm	0.039 in		50 V	105 ░C	-55 °C	UL94 V-0	0.5 A	Surface Mount Right Angle	Contacts Top and Bottom	Gray	Solder	Gold	0.3 mm	12
Hirose Electric USA, Inc. FH34SRJ-45S-0.5SH(99)	Black	Backlock Flip Lock	Liquid Crystal Polymer (LCP) Halogen Free	Nylon Polyamide (PA)	0.5 mm	0.02 in	Phosphor Bronze	20	FFC FPC	Straight	1 mm	0.039 in		50 V	105 ░C	-55 °C	UL94 V-0	0.5 A	Surface Mount Right Angle	Contacts Top and Bottom	Gray	Solder	Gold	0.3 mm	45	Solder Retention Zero Insertion Force (ZIF)	1.97 Áin	0.05 Ám
Hirose Electric USA, Inc. FH34SRJ-26S-0.5SH(99)	Black	Backlock Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	Nylon Polyamide (PA)	0.5 mm	0.02 in	Phosphor Bronze	20	FFC FPC	Tapered	1 mm	0.039 in		50 V	105 ░C	-55 °C	UL94 V-0	0.5 A	Surface Mount Right Angle	Contacts Top and Bottom	Gray	Solder	Gold	0.3 mm	26
Hirose Electric USA, Inc. FH34SRJ-9S-0.5SH(50)	Black	Backlock Flip Lock	Liquid Crystal Polymer (LCP) Halogen Free	Nylon Polyamide (PA)	0.5 mm	0.02 in	Phosphor Bronze	20	FFC FPC	Tapered	1 mm	0.039 in		50 V	105 ░C	-55 °C	UL94 V-0	0.5 A	Surface Mount Right Angle	Contacts Top and Bottom	Gray	Solder	Gold	0.3 mm	9	Solder Retention Zero Insertion Force (ZIF)
Hirose Electric USA, Inc. FH34SRJ-11S-0.5SH(50)	Black	Backlock Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	Nylon Polyamide (PA)	0.5 mm	0.02 in	Phosphor Bronze	20	FFC FPC	Tapered	1 mm	0.039 in		50 V	105 ░C	-55 °C	UL94 V-0	0.5 A	Surface Mount Right Angle	Contacts Top and Bottom	Gray	Solder	Gold	0.3 mm	11		1.97 Áin	0.05 Ám
Hirose Electric USA, Inc. FH34SRJ-20S-0.5SH(50)	Black	Backlock Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	Nylon Polyamide (PA)	0.5 mm	0.02 in	Phosphor Bronze	20	FFC FPC	Tapered	1 mm	0.039 in		50 V	105 ░C	-55 °C	UL94 V-0	0.5 A	Surface Mount Right Angle	Contacts Top and Bottom	Gray	Solder	Gold	0.3 mm	20		1.97 Áin	0.05 Ám
Hirose Electric USA, Inc. FH34SRJ-50S-0.5SH(50)	Black	Backlock Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	Nylon Polyamide (PA)	0.5 mm	0.02 in	Phosphor Bronze	20	FFC FPC	Tapered	1 mm	0.039 in		50 V	105 ░C	-55 °C	UL94 V-0	0.5 A	Surface Mount Right Angle	Contacts Top and Bottom	Gray	Solder	Gold	0.3 mm	50		1.97 Áin	0.05 Ám
Hirose Electric USA, Inc. FH34SRJ-9S-0.5SH(99)	Black	Backlock Flip Lock	Liquid Crystal Polymer (LCP) Halogen Free	Nylon Polyamide (PA)	0.5 mm	0.02 in	Phosphor Bronze	20	FFC FPC	Tapered	1 mm	0.039 in		50 V	105 ░C	-55 °C	UL94 V-0	0.5 A	Surface Mount Right Angle	Contacts Top and Bottom	Gray	Solder	Gold	0.3 mm	9	Solder Retention Zero Insertion Force (ZIF)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FH34SRJ Series

20 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
