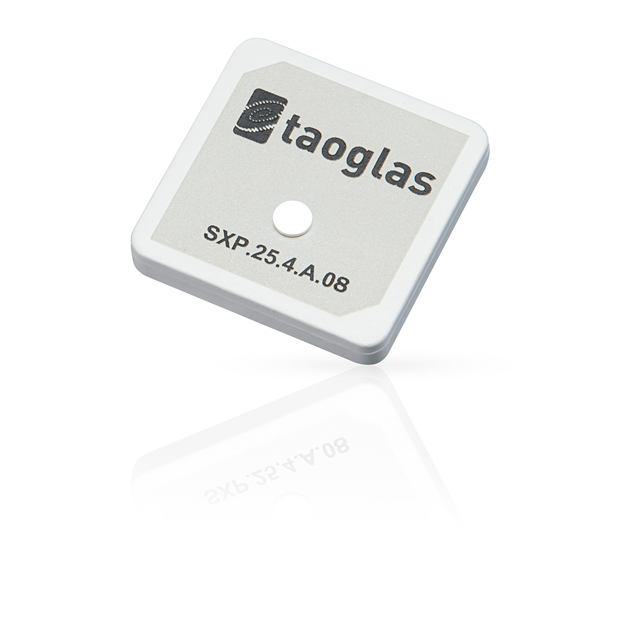

SXP.25.4.A.08
ObsoleteTAOGLAS
SDARS 2320 2345MHZ DUAL-BAND XM
Deep-Dive with AI
Search across all available documentation for this part.
SXP.25.4.A.08
ObsoleteTAOGLAS
SDARS 2320 2345MHZ DUAL-BAND XM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SXP.25.4.A.08 |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | SDARS |
| Frequency (Center/Band) | 2.3325 GHz |
| Frequency Range [Max] | 2.345 GHz, 2.3325 GHz |
| Frequency Range [Min] | 2.32 GHz, 2.3325 GHz |
| Gain | 9.2 dBd |
| Height (Max) | 4 mm |
| Height (Max) [Max] [z] | 0.157 in |
| Mounting Type | Adhesive |
| Number of Bands | 3 |
| Return Loss | -10 dB |
| RF Family/Standard | SDARS |
| Termination | Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SXP.25 Series
RF ANTENNA SDARS Ceramic Patch Pin Adhesive
Documents
Technical documentation and resources
No documents available
