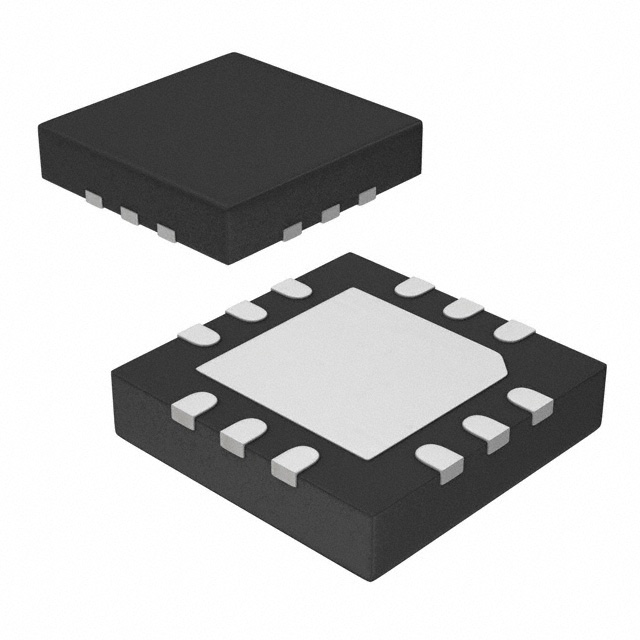

AS1352-C0CF-T

Active

ams-OSRAM USA INC.

IC REG LIN POS PROG 200MA 12-QFN

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

IC REG LIN POS PROG 200MA 12-QFN

Technical Specifications

Parameters and characteristics for this part

Specification	AS1352-C0CF-T

Control Features	Enable
Current - Output	200 mA
Current - Quiescent (Iq)	350 µA
Mounting Type	Surface Mount
Number of Regulators	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Programmable
Package / Case	12-VQFN Exposed Pad
Protection Features	Soft Start, Over Temperature, Over Current
PSRR [Max]	70 dB
PSRR [Min]	40 dB
Supplier Device Package	12-QFN (4x4)
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	1.8 V, 3.3 V, 3 V

Part	Output Configuration	Protection Features	Mounting Type	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Number of Regulators	Voltage - Output (Max) [Max]	Current - Output	Package / Case	Output Type	Voltage - Output (Min/Fixed)	Supplier Device Package	PSRR [Max]	PSRR [Min]
ams-OSRAM USA INC. AS1352V-T	Positive	Over Current Over Temperature Soft Start	Surface Mount	350 µA	5.5 V	85 °C	-40 °C	Enable	4	3.3 V	200 mA	16-VFQFN Exposed Pad	Programmable	1.8 V	16-QFN (3x3)	70 dB	40 dB
ams-OSRAM USA INC. AS1352-C0CF-T	Positive	Over Current Over Temperature Soft Start	Surface Mount	350 µA	5.5 V	85 °C	-40 °C	Enable	4		200 mA	12-VQFN Exposed Pad	Programmable	1.8 V 3 V 3.3 V	12-QFN (4x4)	70 dB	40 dB
ams-OSRAM USA INC. AS1352V	Positive	Over Current Over Temperature Soft Start	Surface Mount	350 µA	5.5 V	85 °C	-40 °C	Enable	4	3.3 V	200 mA	16-VFQFN Exposed Pad	Programmable	1.8 V	16-QFN (3x3)	70 dB	40 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Programmable 4 Output 200mA 12-QFN (4x4)
