1.30.255.001/0800

RAFI USA

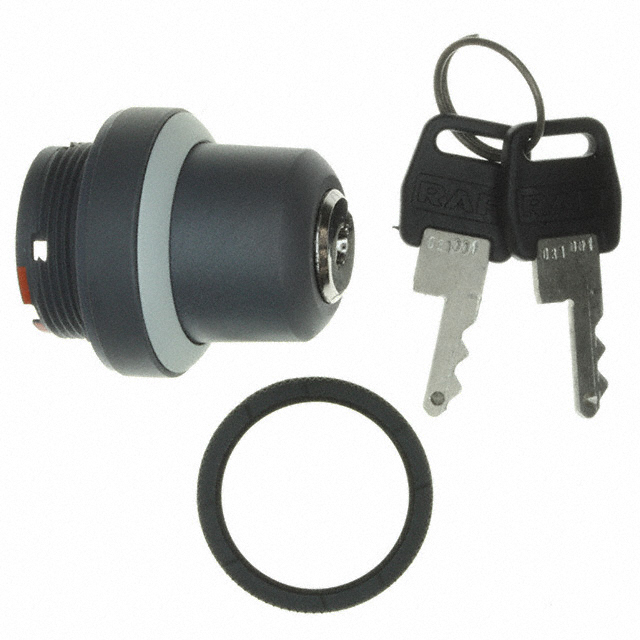

CONFIG SW BODY KEYLOCK NON-ILLUM

Search across all available documentation for this part.

RAFI USA

CONFIG SW BODY KEYLOCK NON-ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	1.30.255.001/0800

(Select First, Then Apply Filters) Compatible Series	Rafix 22 FS
Actuator Type	Keylock
Illumination	Non-Illuminated
Panel Cutout Dimensions	22.3 mm
Requires	Contact Block(s)
Type	Momentary

Part	(Select First, Then Apply Filters) Compatible Series	Actuator Type	Requires	Panel Cutout Dimensions	Type	Illumination
RAFI USA 1.30.255.372/0000
RAFI USA 1.30.255.431/0800	Rafix 22 FS	Keylock	Contact Block(s)	22.3 mm	Maintained	Non-Illuminated
RAFI USA 1.30.255.321/0800	Rafix 22 FS	Keylock	Contact Block(s)	22.3 mm	Maintained	Non-Illuminated
RAFI USA 1.30.255.201/0300	Rafix 22 FS	Keylock	Contact Block(s)	22.3 mm	Maintained	Non-Illuminated
RAFI USA 1.30.255.101/0100	Rafix 22 FS	Keylock	Contact Block(s)	22.3 mm	Momentary	Non-Illuminated
RAFI USA 1.30.255.201/0800	Rafix 22 FS	Keylock	Contact Block(s)	22.3 mm	Maintained	Non-Illuminated
RAFI USA 1.30.255.001/0800	Rafix 22 FS	Keylock	Contact Block(s)	22.3 mm	Momentary	Non-Illuminated
RAFI USA 1.30.255.202/0000
RAFI USA 1.30.255.301/0800	Rafix 22 FS	Keylock	Contact Block(s)	22.3 mm	Maintained	Non-Illuminated
RAFI USA 1.30.255.321/0700

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 48.19

General part information

Configurable Switch Body Keylock Non-Illuminated
