MSAP-05PMMR-SF8003

Active

Amphenol LTW

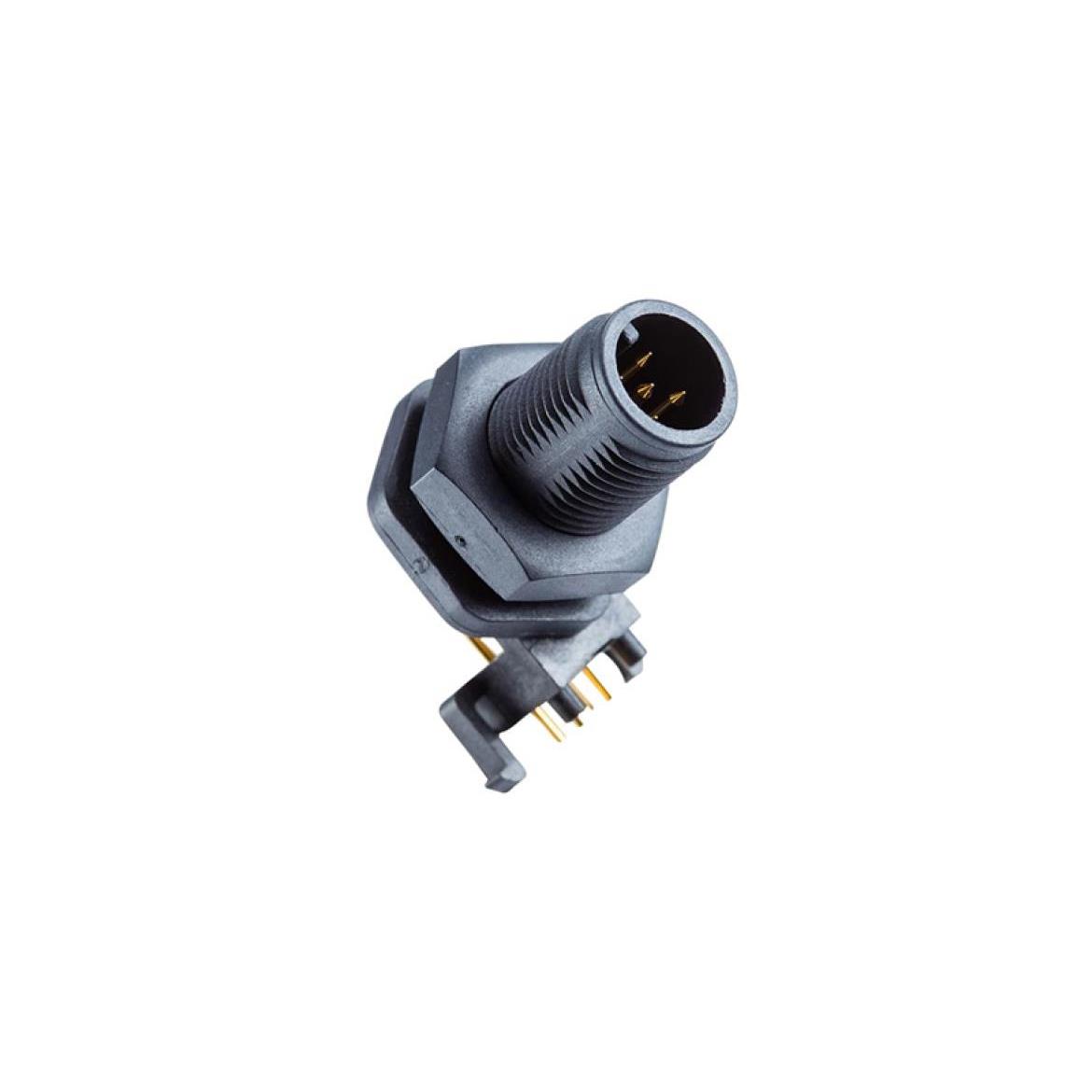

M SERIES, M12, 4A, 05 PINS, RECEPTACLE, HEXAGONAL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES, M12, 4A, 05 PINS, RECEPTACLE, HEXAGONAL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	MSAP-05PMMR-SF8003

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Board Guide, Board Lock
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	M12-5
Shielding	Unshielded
Termination	Solder
Voltage Rating	60 VDC

Part	Connector Type	Insert Material	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Contact Material	Color	Mounting Type	Shell Material	Voltage Rating	Shell Size - Insert	Termination	Current Rating (Amps)	Orientation	Shielding	Features	Contact Finish - Mating	Primary Material
Amphenol LTW MSAP-05PMMR-SF8003	Male Pins Receptacle	Polyamide (PA) Nylon Glass Filled	Bulkhead - Front Side Nut	-40 °C	105 ░C	IP68 - Dust Tight Waterproof	Copper Alloy	Black	Panel Mount Right Angle Through Hole	Glass Filled Nylon Polyamide (PA)	60 VDC	M12-5	Solder	4 A	A	Unshielded	Board Guide Board Lock	Gold	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder
