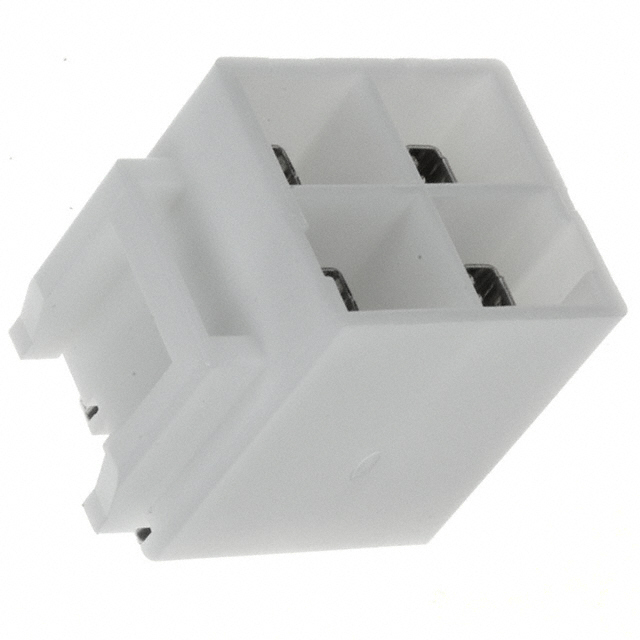

B04P-VL

Active

JST Sales America Inc.

CONN HEADER VERT 4POS 6.2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 4POS 6.2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B04P-VL

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	20 A
Fastening Type	Latch Holder
Insulation Color	Natural
Insulation Height	16.4 mm
Insulation Height	0.646 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Mated Stacking Heights	29.2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	6.2 mm
Pitch - Mating [x]	0.244 in
Row Spacing - Mating	8.28 mm
Row Spacing - Mating	0.326 "
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 V

Part	Termination	Fastening Type	Mated Stacking Heights	Shrouding	Number of Positions Loaded	Number of Positions	Insulation Height	Insulation Height	Insulation Color	Style	Mounting Type	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Voltage Rating	Material Flammability Rating	Connector Type	Contact Material	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Material	Contact Shape
JST Sales America Inc. B04P-VL	Solder	Latch Holder	29.2 mm	Shrouded - 4 Wall	All	4	16.4 mm	0.646 in	Natural	Board to Cable/Wire	Through Hole	Tin	3.6 mm	0.142 in	20 A	Male Pin	8.28 mm	0.326 "	90 °C	-25 °C	2	600 V	UL94 V-0	Header	Copper Alloy	6.2 mm	0.244 in	Polyamide (PA66) Nylon 6/6	Square
JST Sales America Inc. B04P-VL-VN-1.8	Solder	Latch Holder	29.2 mm	Shrouded - 4 Wall	All	4	16.4 mm	0.646 in	Natural	Board to Cable/Wire	Through Hole	Tin	3.6 mm	0.142 in	20 A	Male Pin			90 °C	-25 °C	1	600 V	UL94 V-0	Header	Copper Alloy	6.2 mm	0.244 in	Polyamide (PA66) Nylon 6/6	Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 4 position 0.244" (6.20mm)
