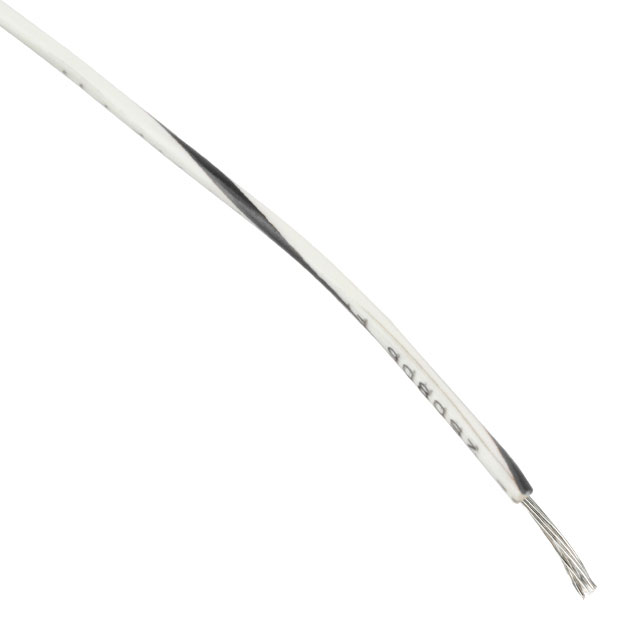

1557 WB001

Active

ALPHA WIRE

WIRE, HOOK UP MIL-W-76B TYPE MW, PVC, WHITE, BLACK, 16 AWG, 1.32 MM², 1000 FT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Hook-Up Wire Catalog

1557 WB001

Active

ALPHA WIRE

WIRE, HOOK UP MIL-W-76B TYPE MW, PVC, WHITE, BLACK, 16 AWG, 1.32 MM², 1000 FT

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Hook-Up Wire Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1557 WB001

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	26
Jacket (Insulation) Diameter [diameter]	0.092 in
Jacket (Insulation) Diameter [diameter]	2.34 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in
Jacket (Insulation) Thickness	0.41 mm
Jacket Color	White, Black Stripe
Length	1000 ft
Length	304.8 m
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Qualification	MIL-W-76B Type MW
Voltage	1000 V
Wire Gauge	16 AWG

1557 Series

Part	Jacket Color	Qualification	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Length [x]	Length [x]	Length	Length
ALPHA WIRE 1557 WV005	White Violet Stripe	MIL-W-76B Type MW	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	16 AWG	30 AWG	26	0.092 in	2.34 mm	Copper Tinned	1000 V	-40 °C	80 C	Hook-Up	30.5 m	100 ft
ALPHA WIRE 1557 WH005		MIL-W-76B Type MW	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	16 AWG	30 AWG	26	0.092 in	2.34 mm	Copper Tinned	1000 V	-40 °C	80 C	Hook-Up	30.5 m	100 ft
ALPHA WIRE 1557 OR001	Orange	MIL-W-76B Type MW	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	16 AWG	30 AWG	26	0.092 in	2.34 mm	Copper Tinned	1000 V	-40 °C	80 C	Hook-Up			1000 ft	304.8 m
ALPHA WIRE 1557 WS005	White Gray Stripe	MIL-W-76B Type MW	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	16 AWG	30 AWG	26	0.092 in	2.34 mm	Copper Tinned	1000 V	-40 °C	80 C	Hook-Up	30.5 m	100 ft
ALPHA WIRE 1557 WN001	White Brown Stripe	MIL-W-76B Type MW	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	16 AWG	30 AWG	26	0.092 in	2.34 mm	Copper Tinned	1000 V	-40 °C	80 C	Hook-Up			1000 ft	304.8 m
ALPHA WIRE 1557 YL001	Yellow	MIL-W-76B Type MW	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	16 AWG	30 AWG	26	0.092 in	2.34 mm	Copper Tinned	1000 V	-40 °C	80 C	Hook-Up			1000 ft	304.8 m
ALPHA WIRE 1557 SL005	Slate	MIL-W-76B Type MW	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	16 AWG	30 AWG	26	0.092 in	2.34 mm	Copper Tinned	1000 V	-40 °C	80 C	Hook-Up	30.5 m	100 ft
ALPHA WIRE 1557 WB001	White Black Stripe	MIL-W-76B Type MW	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	16 AWG	30 AWG	26	0.092 in	2.34 mm	Copper Tinned	1000 V	-40 °C	80 C	Hook-Up			1000 ft	304.8 m
ALPHA WIRE 1557 WV001	White Violet Stripe	MIL-W-76B Type MW	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	16 AWG	30 AWG	26	0.092 in	2.34 mm	Copper Tinned	1000 V	-40 °C	80 C	Hook-Up			1000 ft	304.8 m
ALPHA WIRE 1557 VI005	Violet	MIL-W-76B Type MW	0.016 in	0.41 mm	Poly-Vinyl Chloride (PVC)	16 AWG	30 AWG	26	0.092 in	2.34 mm	Copper Tinned	1000 V	-40 °C	80 C	Hook-Up	30.5 m	100 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 567.90
		3	$ 529.18
		5	$ 500.14
		10	$ 474.33
		25	$ 419.47
Newark	Spool of 1000	1	$ 507.18

Description

General part information

1557 Series

16 AWG Hook-Up Wire 26/30 White, Black Stripe 1000V 1000.0' (304.8m)

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Hook-Up Wire Catalog

Datasheet
