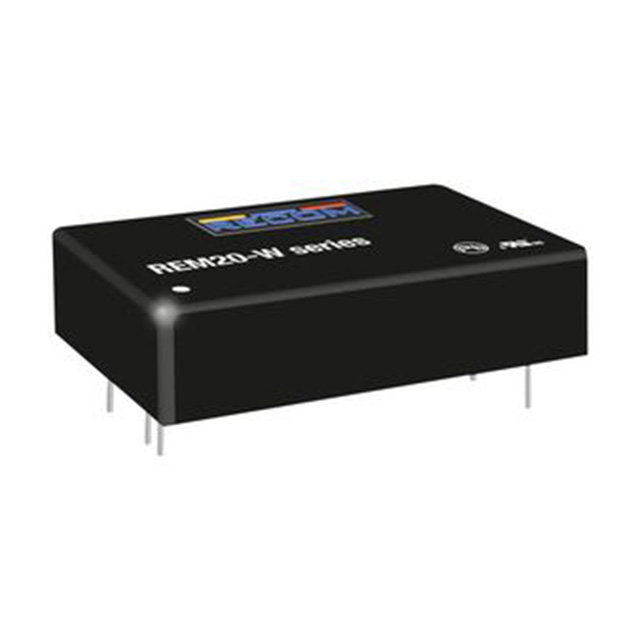

REM20-4824SW/P

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 20W 18-75VIN 24VOUT 833MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

REM20-4824SW/P

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 20W 18-75VIN 24VOUT 833MA

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	REM20-4824SW/P

Applications	ITE (Commercial), Medical
Current - Output (Max) [Max]	833 mA
Efficiency	88.5 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	20 W
Size / Dimension [x]	40.6 mm
Size / Dimension [x]	1.6 "
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	10.2 mm
Size / Dimension [z]	0.4 "
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	5000 V
Voltage - Output 1	24 V

REM20-4824 Series

Isolated DC/DC Converters - SMD 20W 9-36Vin 15Vout 1.333A

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Features	Applications	Mounting Type	Efficiency	Voltage - Isolation	Number of Outputs	Current - Output (Max) [Max]	Power (Watts)	Type	Voltage - Output 1	Voltage - Input (Min) [Min]	Package / Case	Package / Case	Voltage - Output 2	Current - Output (Max) [Max]
RECOM Power REM20-2415SW/P	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	-40 °C	105 C	36 V	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial) Medical	Through Hole	88 %	5000 V	1	1.333 A	20 W	Isolated Module	15 V	9 V	6-DIP Module
RECOM Power REM20-4824SW/P	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	-40 °C	105 C	75 V	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial) Medical	Through Hole	88.5 %	5000 V	1	833 mA	20 W	Isolated Module	24 V	18 V	6-DIP Module
RECOM Power REM20-2412SW	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	-40 °C	105 C	36 V	OCP OTP OVP SCP UVLO	ITE (Commercial) Medical	Through Hole	88.5 %	5000 V	1	1.667 A	20 W	Isolated Module	12 V	9 V	6-DIP Module	5 Leads
RECOM Power REM20-4815SW	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	-40 °C	105 C	75 V	OCP OTP OVP SCP UVLO	ITE (Commercial) Medical	Through Hole	88 %	5000 V	1	1.333 A	20 W	Isolated Module	15 V	18 V	6-DIP Module	5 Leads
RECOM Power REM20-4805DW	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	-40 °C	105 C	75 V	OCP OTP OVP SCP UVLO	ITE (Commercial) Medical	Through Hole	86 %	5000 V	2	2 A	20 W	Isolated Module	5 V	18 V	6-DIP Module	5 Leads	-5 V	2 A
RECOM Power REM20-2405SW	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	-40 °C	105 C	36 V	OCP OTP OVP SCP UVLO	ITE (Commercial) Medical	Through Hole	87 %	5000 V	1	4 A	20 W	Isolated Module	5 V	9 V	6-DIP Module	5 Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 93.63
Sager	N/A	1	$ 99.68
		5	$ 93.45
		10	$ 87.96
		25	$ 81.93
		50	$ 78.71
		100	$ 76.67
		250	$ 72.93

Description

General part information

REM20-4824 Series

Isolated DC/DC Converters - SMD 20W 9-36Vin 15Vout 1.333A
