C1321.41.03
ActivePrysmian Group

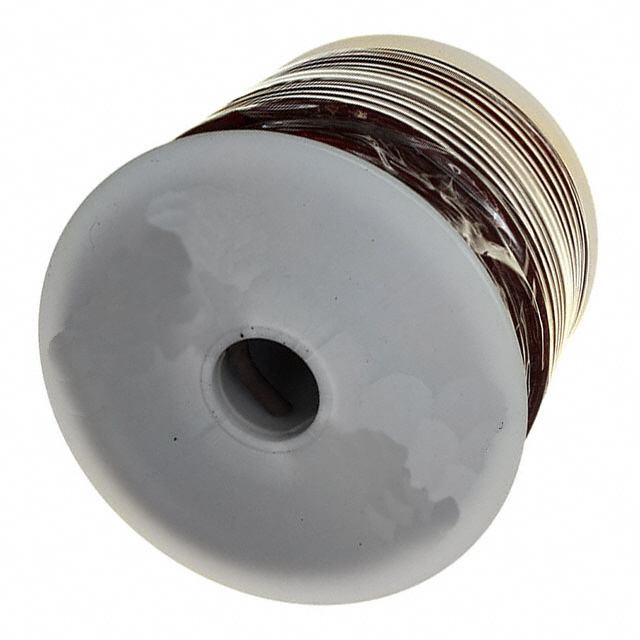

TEST LEAD 18AWG 5000V RED 1000'
Deep-Dive with AI
Search across all available documentation for this part.
C1321.41.03
ActivePrysmian Group
TEST LEAD 18AWG 5000V RED 1000'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C1321.41.03 |
|---|---|
| Conductor Material | Copper, Annealed Tinned |
| Conductor Strand [custom] | 65 |
| Conductor Strand [custom] | 36 |
| Jacket (Insulation) Diameter [diameter] | 0.145 in |
| Jacket (Insulation) Diameter [diameter] | 3.68 mm |
| Jacket (Insulation) Material | Rubber |
| Jacket (Insulation) Thickness | 0.045 in |
| Jacket (Insulation) Thickness | 1.14 mm |
| Jacket Color | Red |
| Length | 1000 ft |
| Length | 304.8 m |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Ratings | ASTM B-33 |
| Voltage | 5 kVDC |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.26 | |
| 2000 | $ 0.25 | |||
| 3000 | $ 0.24 | |||
| 5000 | $ 0.23 | |||
| 7000 | $ 0.23 | |||
| 10000 | $ 0.22 | |||
| 25000 | $ 0.21 | |||
| 50000 | $ 0.20 | |||
Description
General part information
C1321 Series
18 AWG Test Lead Wire 65/36 Red 5000V 1000.0' (304.8m)
Documents
Technical documentation and resources
No documents available
