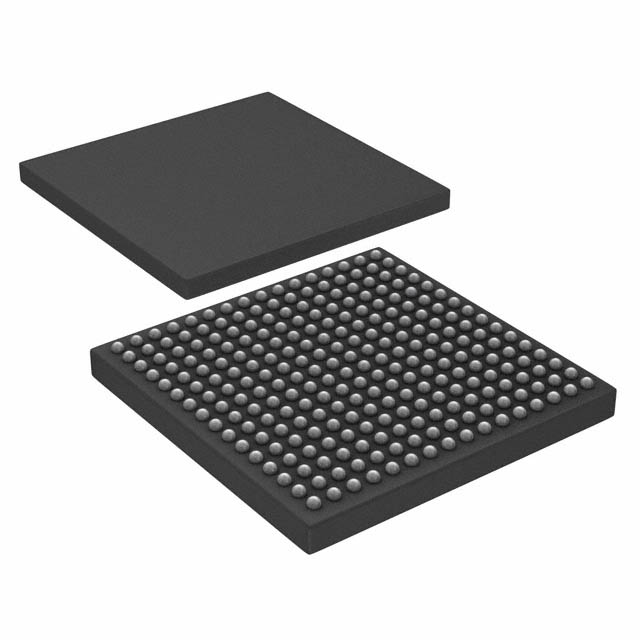

LAXP2-5E-5FTN256E

Active

LATTICE SEMICONDUCTOR

LATTICEXP2 AUTO GRADE (AEC-Q100)

Search across all available documentation for this part.

Active

LATTICE SEMICONDUCTOR

LATTICEXP2 AUTO GRADE (AEC-Q100)

Technical Specifications

Parameters and characteristics for this part

Specification	LAXP2-5E-5FTN256E

Mounting Type	Surface Mount
Number of I/O	172
Number of LABs/CLBs	625
Number of Logic Elements/Cells	5000
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	256-LBGA
Supplier Device Package	256-FTBGA (17x17)
Total RAM Bits	169984 bits

Part	Total RAM Bits	Mounting Type	Number of Logic Elements/Cells	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Number of I/O	Package / Case	Number of LABs/CLBs
LATTICE SEMICONDUCTOR LAXP2-5E-5MN132E	169984 bits	Surface Mount	5000	132-CSBGA (8x8)	-40 °C	125 ¯C	86	132-LFBGA CSPBGA	625
LATTICE SEMICONDUCTOR LAXP2-17E-5QN208E	282624 Bits	Surface Mount	17000	208-PQFP (28x28)	-40 °C	125 ¯C	146	208-BFQFP	2125
LATTICE SEMICONDUCTOR LAXP2-8E-5TN144E	226304	Surface Mount	8000	144-TQFP (20x20)	-40 °C	125 ¯C	100 I/O	144-LQFP	1000
LATTICE SEMICONDUCTOR LAXP2-5E-5FTN256E	169984 bits	Surface Mount	5000	256-FTBGA (17x17)	-40 °C	125 ¯C	172	256-LBGA	625
LATTICE SEMICONDUCTOR LAXP2-8E-5MN132E	226304	Surface Mount	8000	132-CSBGA (8x8)	-40 °C	125 ¯C	86	132-LFBGA CSPBGA	1000

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LA-XP2 Field Programmable Gate Array (FPGA) IC 172 169984 5000 256-LBGA
