Q-0302C0003012i

Active

Amphenol Custom Cable

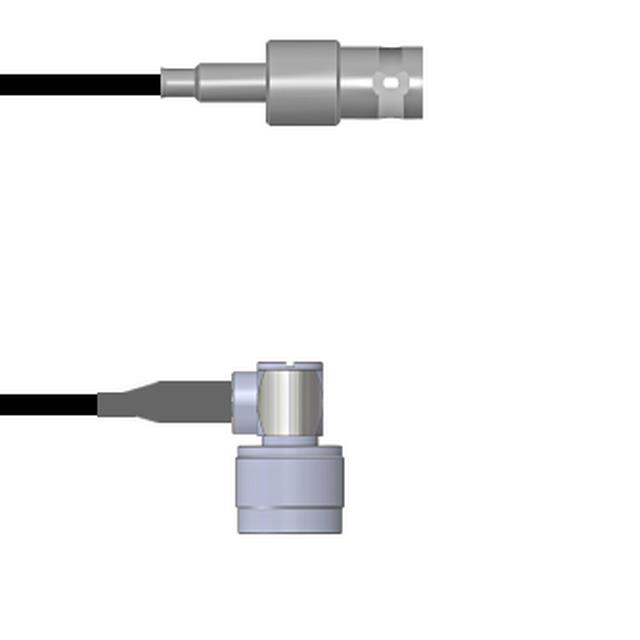

CBL ASSY BNC-NTYPE JACK-PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0302C0003012i

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE JACK-PLUG 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0302C0003012i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0302C0 Series

Part	1st Connector	Frequency - Max [Max]	Cable Type	Length	Length	Overall Impedance	Color	Style	Features	2nd Contact Gender	1st Connector Mounting Type	2nd Connector	1st Contact Gender	2nd Connector Mounting Type	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0302C0003003i	BNC Jack	4 GHz	RG-174	3 in	76.2 mm	50 Ohms	Black	BNC to N-Type	Shielded	Male	Free Hanging (In-Line)	N-Type Plug Right Angle	Female	Free Hanging (In-Line)
Amphenol Custom Cable Q-0302C00052.5M	BNC Jack	4 GHz	RG-316	98.4 in	2.5 m	50 Ohms	Copper	BNC to N-Type	Shielded	Male	Free Hanging (In-Line)	N-Type Plug Right Angle	Female	Free Hanging (In-Line)	8.2 '
Amphenol Custom Cable Q-0302C0003.25M	BNC Jack	4 GHz	RG-174			50 Ohms	Black	BNC to N-Type	Shielded	Male	Free Hanging (In-Line)	N-Type Plug Right Angle	Female	Free Hanging (In-Line)		9.843 "	250 mm
Amphenol Custom Cable Q-0302C0005009i	BNC Jack	4 GHz	RG-316	9 "	228.6 mm	50 Ohms	Copper	BNC to N-Type	Shielded	Male	Free Hanging (In-Line)	N-Type Plug Right Angle	Female	Free Hanging (In-Line)
Amphenol Custom Cable Q-0302C0003002M	BNC Jack	4 GHz	RG-174	78.7 in	2 m	50 Ohms	Black	BNC to N-Type	Shielded	Male	Free Hanging (In-Line)	N-Type Plug Right Angle	Female	Free Hanging (In-Line)	6.6 ft
Amphenol Custom Cable Q-0302C0005003M	BNC Jack	4 GHz	RG-316	118.1 in	3 m	50 Ohms	Copper	BNC to N-Type	Shielded	Male	Free Hanging (In-Line)	N-Type Plug Right Angle	Female	Free Hanging (In-Line)	9.8 '
Amphenol Custom Cable Q-0302C0005018i	BNC Jack	4 GHz	RG-316			50 Ohms	Copper	BNC to N-Type	Shielded	Male	Free Hanging (In-Line)	N-Type Plug Right Angle	Female	Free Hanging (In-Line)			457.2 mm	457.2 mm
Amphenol Custom Cable Q-0302C0005003i	BNC Jack	4 GHz	RG-316	3 in	76.2 mm	50 Ohms	Copper	BNC to N-Type	Shielded	Male	Free Hanging (In-Line)	N-Type Plug Right Angle	Female	Free Hanging (In-Line)
Amphenol Custom Cable Q-0302C00032.5M	BNC Jack	4 GHz	RG-174	98.4 in	2.5 m	50 Ohms	Black	BNC to N-Type	Shielded	Male	Free Hanging (In-Line)	N-Type Plug Right Angle	Female	Free Hanging (In-Line)	8.2 '
Amphenol Custom Cable Q-0302C0003012i	BNC Jack	4 GHz	RG-174	12 "	304.8 mm	50 Ohms	Black	BNC to N-Type	Shielded	Male	Free Hanging (In-Line)	N-Type Plug Right Angle	Female	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 65.90
		25	$ 64.63
		50	$ 63.35
		100	$ 62.08
		250	$ 60.81

Description

General part information

Q-0302C0 Series

Cable Assembly Coaxial BNC to N-Type RG-174 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
