OSTOQ075451

Active

On Shore Technology Inc.

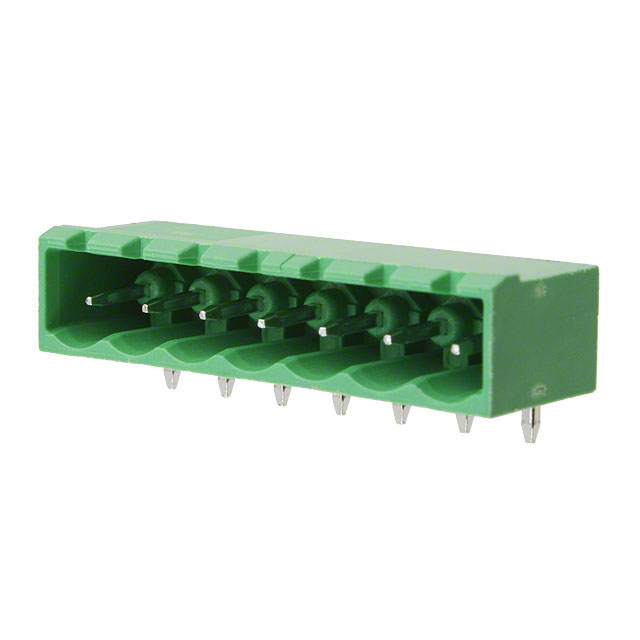

TERM BLOCK HDR 7POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OSTOQ075451

Active

On Shore Technology Inc.

TERM BLOCK HDR 7POS 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OSTOQ075451

Contact Mating Finish	Tin
Contact Tail Length	0.157 in
Contact Tail Length	4 mm
Header Orientation	90°, Right Angle
Housing Material	Thermoplastic
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Mounting Type	Solder
Number of Levels	1
Number of Positions	7
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	7
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

OSTOQ07 Series

Part	Header Orientation	Insulation Height [custom]	Insulation Height [custom]	Contact Mating Finish	Number of Levels	Contact Material	Voltage - UL	Housing Material	Material Flammability Rating	Number of Positions	Mounting Type	Type	Contact Tail Length	Contact Tail Length	Positions Per Level	Features	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Insulation Height	Insulation Height
On Shore Technology Inc. OSTOQ077550	Vertical	0.157 in	4 mm	Tin	1	Brass	300 V	Thermoplastic	UL94 V-0	7	Through Hole	Header Male Pins Shrouded (4 Side)	0.157 in	4 mm	7	Mating Flange	5 mm	0.197 in	-30 ░C	105 ░C	Solder
On Shore Technology Inc. OSTOQ071251	90° Right Angle			Tin	1	Brass	300 V	Thermoplastic		7	Solder	Header Male Pins Shrouded (4 Side)	0.138 in	3.5 mm	7		3.5 mm	0.138 in	-30 ░C	105 ░C		3.5 mm	0.138 in
On Shore Technology Inc. OSTOQ07B151	90° Right Angle			Tin	1	Brass	125 V	Thermoplastic		7	Solder	Header Male Pins Shrouded (4 Side)	0.15 in	3.81 mm	7		2.5 mm	0.098 in	-30 ░C	105 ░C		3.81 mm	0.15 in
On Shore Technology Inc. OSTOQ076401					1					7	Solder	Header Male Pins			7
On Shore Technology Inc. OSTOQ075451	90° Right Angle	0.157 in	4 mm	Tin	1		300 V	Thermoplastic		7	Solder	Header Male Pins Shrouded (4 Side)	0.157 in	4 mm	7		5.08 mm	0.2 in	-40 °C	115 °C
On Shore Technology Inc. OSTOQ070051	90° Right Angle	0.157 in	4 mm	Tin	1	Brass	300 V	Thermoplastic		7	Solder	Header Male Pins Shrouded (2 Side)	0.157 in	4 mm	7		7.62 mm	0.3 in	-30 ░C	105 ░C
On Shore Technology Inc. OSTOQ070550	Vertical	0.157 in	4 mm	Tin	1	Brass	300 V	Thermoplastic	UL94 V-0	7	Solder	Header Male Pins Shrouded (4 Side)	0.157 in	4 mm	7	Mating Flange	7.62 mm	0.3 in	-30 ░C	105 ░C
On Shore Technology Inc. OSTOQ077151	90° Right Angle	0.157 in	4 mm	Tin	1	Brass	300 V	Thermoplastic		7	Solder	Header Male Pins Shrouded (4 Side)	0.157 in	4 mm	7		5 mm	0.197 in	-40 °C	115 °C
On Shore Technology Inc. OSTOQ070050	Vertical	0.157 in	4 mm	Tin	1	Brass	300 V	Thermoplastic		7	Solder	Header Male Pins Shrouded (2 Side)	0.157 in	4 mm	7		7.62 mm	0.3 in	-30 ░C	105 ░C
On Shore Technology Inc. OSTOQ071250	Vertical			Tin	1	Brass	300 V	Thermoplastic		7	Solder	Header Male Pins Shrouded (4 Side)	0.138 in	3.5 mm	7		3.5 mm	0.138 in	-30 ░C	105 ░C		3.5 mm	0.138 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.19
		10	$ 0.87
		25	$ 0.75
		50	$ 0.68
		100	$ 0.62
		250	$ 0.55
		500	$ 0.51
		1000	$ 0.48
		5000	$ 0.42

Description

General part information

OSTOQ07 Series

7 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Solder
