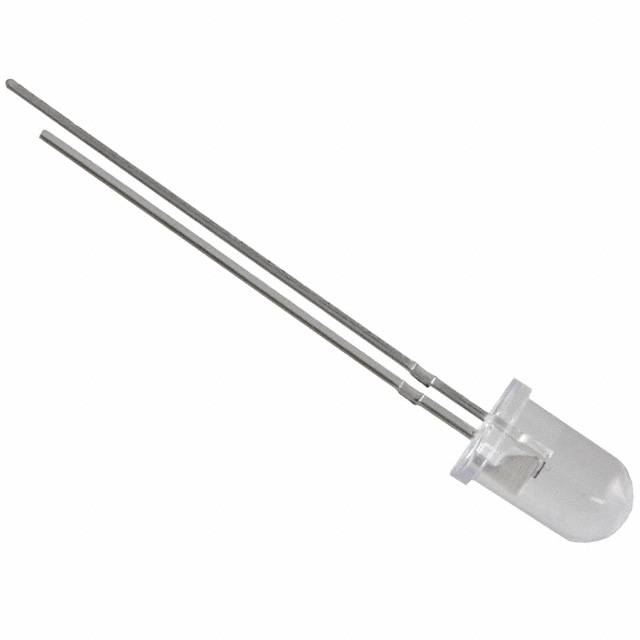

PT333-3C

Active

Everlight Electronics Co Ltd

SENSOR PHOTO 940NM TOP VIEW RAD

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

SENSOR PHOTO 940NM TOP VIEW RAD

Technical Specifications

Parameters and characteristics for this part

Specification	PT333-3C

Current - Collector (Ic) (Max) [Max]	20 mA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Top View
Package / Case	T 1 3/4, Radial
Package / Case [diameter]	5 mm
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	940 nm

Part	Package / Case [diameter]	Package / Case	Wavelength	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Orientation	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Current - Dark (Id) (Max) [Max]
Everlight Electronics Co Ltd PT333-3B	5 mm	Radial T 1 3/4	940 nm	85 °C	-40 °C	Through Hole	Top View	30 V	20 mA	100 nA
Everlight Electronics Co Ltd PT333-3C	5 mm	Radial T 1 3/4	940 nm	85 °C	-25 °C	Through Hole	Top View	30 V	20 mA	100 nA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 940nm Top View Radial, 5mm Dia (T 1 3/4)
