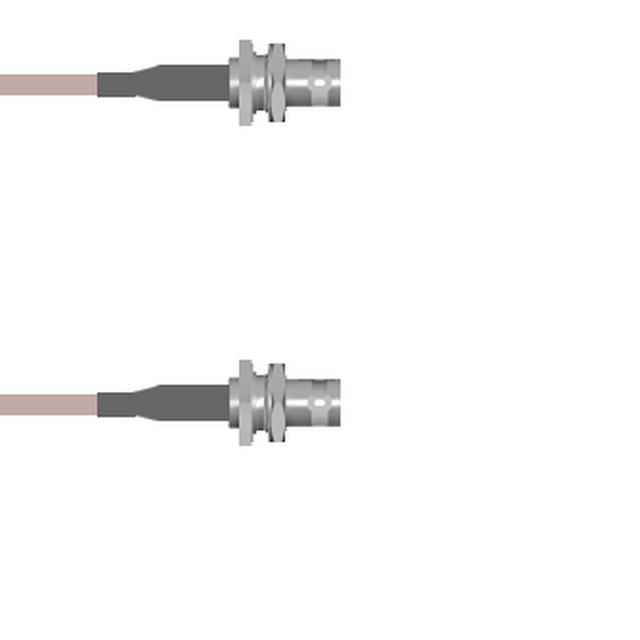

Q-06006000S2.5M

Active

Amphenol Custom Cable

CBL ASSY BNC JACK TO JACK 8.2'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY BNC JACK TO JACK 8.2'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-06006000S2.5M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	BNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-179
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	75 Ohms
Style	BNC to BNC

Part	Cable Type	1st Contact Gender	2nd Connector Mounting Type	Overall Impedance	2nd Connector	2nd Connector Mounting Feature	Features	1st Connector	2nd Contact Gender	1st Connector Mounting Feature	Style	Length	Length	Length	1st Connector Mounting Type	Color	Frequency - Max [Max]
Amphenol Custom Cable Q-06006000S048i	RG-179	Female	Panel Mount	75 Ohms	BNC Jack	Bulkhead - Front Side Nut	Shielded	BNC Jack	Female	Bulkhead - Front Side Nut	BNC to BNC	1200 mm	4 ft	48 in	Panel Mount	Copper	4 GHz
Amphenol Custom Cable Q-06006000S2.5M	RG-179	Female	Panel Mount	75 Ohms	BNC Jack	Bulkhead - Front Side Nut	Shielded	BNC Jack	Female	Bulkhead - Front Side Nut	BNC to BNC	2.5 m	8.2 '	98.4 in	Panel Mount	Copper	4 GHz
Amphenol Custom Cable Q-06006000S108i	RG-179	Female	Panel Mount	75 Ohms	BNC Jack	Bulkhead - Front Side Nut	Shielded	BNC Jack	Female	Bulkhead - Front Side Nut	BNC to BNC	2.7 m	9 ft	108 in	Panel Mount	Copper	4 GHz
Amphenol Custom Cable Q-06006000S072i	RG-179	Female	Panel Mount	75 Ohms	BNC Jack	Bulkhead - Front Side Nut	Shielded	BNC Jack	Female	Bulkhead - Front Side Nut	BNC to BNC	1.8 m	6 ft	72 in	Panel Mount	Copper	4 GHz
Amphenol Custom Cable Q-06006000S1.5M	RG-179	Female	Panel Mount	75 Ohms	BNC Jack	Bulkhead - Front Side Nut	Shielded	BNC Jack	Female	Bulkhead - Front Side Nut	BNC to BNC	1.5 m	4.9 ft	59.1 in	Panel Mount	Copper	4 GHz
Amphenol Custom Cable Q-06006000S084i	RG-179	Female	Panel Mount	75 Ohms	BNC Jack	Bulkhead - Front Side Nut	Shielded	BNC Jack	Female	Bulkhead - Front Side Nut	BNC to BNC	2.1 m	7 ft	84 in	Panel Mount	Copper	4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to BNC RG-179 98.4" (2.5m) 8.2'

Technical documentation and resources

No documents available
