0190180014

Active

Molex

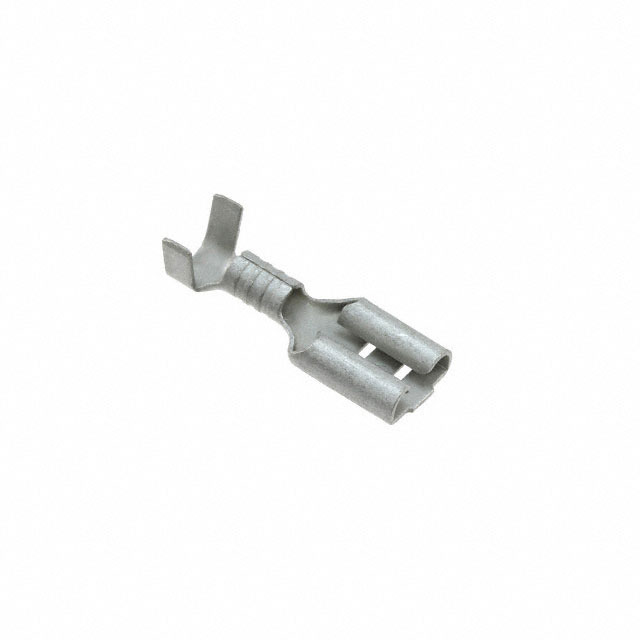

QUICK DISCONNECT TERMINAL 14-16AWG BRASS F 20.4MM TIN VIBRAKRIMP™ BAG

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet

0190180014

Active

Molex

QUICK DISCONNECT TERMINAL 14-16AWG BRASS F 20.4MM TIN VIBRAKRIMP™ BAG

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190180014

Contact Finish	Tin
Contact Material	Brass
Features	Butted Seam
Gender	Female
Insulation	Non-Insulated
Insulation Diameter [Max]	0.145 in
Insulation Diameter [Max]	3.68 mm
Insulation Diameter [Min]	0.085 in
Insulation Diameter [Min]	2.16 mm
Length - Overall	20.37 mm
Length - Overall	0.802 in
Mounting Type	Free Hanging (In-Line)
Tab Length	7.87 mm
Tab Length	0.31 in
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp

019018 Series

Part	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Features	Tab Thickness	Tab Thickness	Termination	Tab Width	Tab Width	Mounting Type	Contact Material	Length - Overall [x]	Length - Overall [x]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation	Gender	Tab Length	Tab Length	Contact Finish	Length - Overall	Length - Overall	Insulation Diameter [Max]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]
Molex 0190180003	22 AWG	17.5 AWG	Standard	Butted Seam	0.032 in	0.81 mm	Crimp	4.75 mm	0.187 in	Free Hanging (In-Line)	Brass	17.58 mm	0.692 in	3.18 mm	0.125 in	0.06 in	1.52 mm	Non-Insulated	Female	6.35 mm	0.25 in	Tin
Molex 0190180014			Standard	Butted Seam	0.032 in	0.81 mm	Crimp	6.35 mm	0.25 in	Free Hanging (In-Line)	Brass			3.68 mm	0.145 in	0.085 in	2.16 mm	Non-Insulated	Female	7.87 mm	0.31 in	Tin	20.37 mm	0.802 in
Molex 0190180023	14 AWG	12 AWG	Standard	Butted Seam	0.032 in	0.81 mm	Crimp	4.75 mm	0.187 in	Free Hanging (In-Line)	Brass	17.58 mm	0.692 in		0.175 in	0.1 in	2.54 mm	Non-Insulated	Female	6.35 mm	0.25 in	Tin			4.45 mm
Molex 0190180005	22 AWG	17.5 AWG	Standard	Butted Seam	0.032 in	0.81 mm	Crimp	6.35 mm	0.25 in	Free Hanging (In-Line)	Brass			3.18 mm	0.125 in	0.06 in	1.52 mm	Non-Insulated	Female	7.87 mm	0.31 in	Tin	20.37 mm	0.802 in
Molex 0190180015			Standard		0.032 in	0.81 mm	Crimp	6.35 mm	0.25 in	Free Hanging (In-Line)	Brass			3.68 mm	0.145 in	0.085 in	2.16 mm	Non-Insulated	Female	7.87 mm	0.31 in	Tin	20.37 mm	0.802 in
Molex 0190180002	22 AWG	17.5 AWG	Standard	Butted Seam	0.032 in	0.81 mm	Crimp	4.75 mm	0.187 in	Free Hanging (In-Line)	Brass	17.58 mm	0.692 in	3.18 mm	0.125 in	0.06 in	1.52 mm	Non-Insulated	Female			Tin
Molex 0190180013			Standard	Butted Seam	0.02 "	0.51 mm	Crimp	4.75 mm	0.187 in	Free Hanging (In-Line)	Brass	17.58 mm	0.692 in	3.68 mm	0.145 in	0.085 in	2.16 mm	Non-Insulated	Female	6.35 mm	0.25 in	Tin
Molex 0190180006	22 AWG	17.5 AWG	Standard	Butted Seam	0.032 in	0.81 mm	Crimp	6.35 mm	0.25 in	Free Hanging (In-Line)	Brass			3.18 mm	0.125 in	0.06 in	1.52 mm	Non-Insulated	Female	7.87 mm	0.31 in	Tin	20.37 mm	0.802 in
Molex 0190180045	26 AWG	24 AWG	Standard	Butted Seam	0.032 in	0.81 mm	Crimp	4.75 mm	0.187 in	Free Hanging (In-Line)	Brass	16.76 mm	0.66 in					Non-Insulated	Female	6.35 mm	0.25 in	Tin				2.41 mm	0.095 "	0.04 in	1.02 mm
Molex 0190180044	26 AWG	24 AWG	Standard	Butted Seam	0.02 "	0.51 mm	Crimp	4.75 mm	0.187 in	Free Hanging (In-Line)	Brass	16.76 mm	0.66 in					Non-Insulated	Female	6.35 mm	0.25 in	Tin				2.41 mm	0.095 "	0.04 in	1.02 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.06
Digikey	Bulk	1	$ 0.24
		10	$ 0.19
		100	$ 0.14
		1000	$ 0.11
		3000	$ 0.10

Description

General part information

019018 Series

0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector Non-Insulated

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
