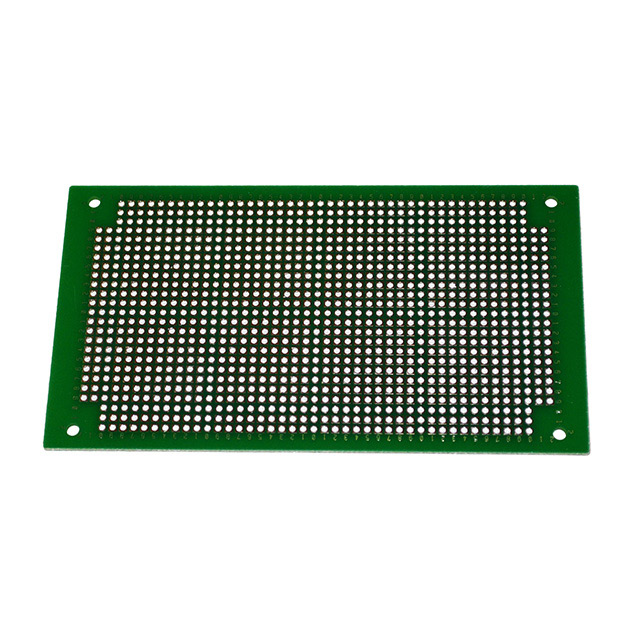

EXN-23406-PCB
ActiveBUD INDUSTRIES
BREADBOARD GENERAL PURPOSE PTH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EXN-23406-PCB
ActiveBUD INDUSTRIES
BREADBOARD GENERAL PURPOSE PTH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EXN-23406-PCB |
|---|---|
| Board Thickness | 1.6 mm |
| Board Thickness | 0.063 in |
| Circuit Pattern | Pad Per Hole (Round) |
| Hole Diameter | 0.051 in |
| Hole Diameter | 1.3 mm |
| Material | FR4 Epoxy Glass |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Plating | Plated Through Hole (PTH) |
| Proto Board Type | Breadboard, General Purpose |
| Size / Dimension [x] | 129.8 mm |
| Size / Dimension [x] | 5.11 in |
| Size / Dimension [y] | 72.9 mm |
| Size / Dimension [y] | 2.87 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.30 | |
| 10 | $ 7.75 | |||
| 50 | $ 7.00 | |||
| 100 | $ 6.56 | |||
Description
General part information
EXN-23406 Series
Breadboard, General Purpose Plated Through Hole (PTH) Pad Per Hole (Round) 0.100" (2.54mm)
