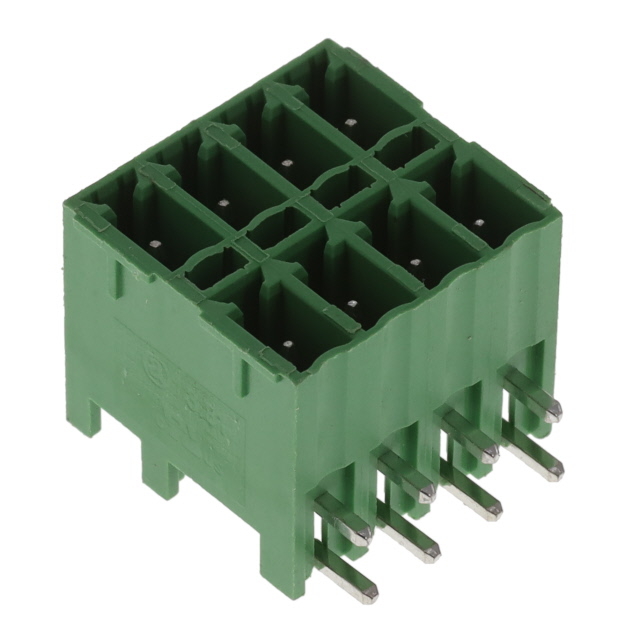

KE083151A000G

Active

Amphenol Anytek

TERM BLOCK HDR 8POS 90DEG 3.81MM

Deep-Dive with AI

Search across all available documentation for this part.

KE083151A000G

Active

Amphenol Anytek

TERM BLOCK HDR 8POS 90DEG 3.81MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KE083151A000G

Color	Green
Contact Material	Copper
Contact Mating Finish	Tin
Contact Tail Length	0.102 in
Contact Tail Length	2.6 mm
Current - UL	5.5 A
Header Orientation	90°, Right Angle
Housing Material	Thermoplastic
Insulation Height	15.19 mm
Insulation Height	0.598 "
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	2
Number of Positions	8
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	4
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

KE08 Series

Part	Contact Mating Finish	Color	Type	Pitch [x]	Pitch [x]	Positions Per Level	Mounting Type	Material Flammability Rating	Contact Tail Length	Contact Tail Length	Termination Style	Contact Material	Number of Levels	Number of Positions	Header Orientation	Current - UL	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - UL	Housing Material	Insulation Height	Insulation Height	Insulation Height [z]	Insulation Height [z]
Amphenol Anytek KE083250A000G	Tin	Green	Header Male Pins Shrouded (4 Side)	0.15 in	3.81 mm	4	Through Hole	UL94 V-0	0.102 in	2.6 mm	Solder	Copper	2	8	Vertical	5.5 A	-40 °C	115 °C	Mating Flange	300 V	Thermoplastic	13.6 mm	0.535 in
Amphenol Anytek KE0873520000G	Tin	Green	Header Male Pins Shrouded (4 Side)	0.197 in	5 mm	4	Through Hole	UL94 V-0	0.102 in	2.6 mm	Solder	Copper	2	8	Vertical	12 A	-40 °C	115 °C	Locking Ramp	300 V	Thermoplastic	17.6 mm	0.693 in
Amphenol Anytek KE0852530000G	Tin	Green	Header Male Pins Shrouded (4 Side)	0.2 in	5.08 mm	4	Through Hole	UL94 V-0	0.102 in	2.6 mm	Solder	Copper	2	8	90° Right Angle	12 A	-40 °C	115 °C	Mating Flange	300 V	Thermoplastic	20.09 mm	0.791 in
Amphenol Anytek KE0874530000G	Tin	Green	Header Male Pins Shrouded (2 Side)	0.197 in	5 mm	4	Through Hole	UL94 V-0	0.102 in	2.6 mm	Solder	Copper	2	8	90° Right Angle	12 A	-40 °C	115 °C		300 V	Thermoplastic	20.09 mm	0.791 in
Amphenol Anytek KE083151A000G	Tin	Green	Header Male Pins Shrouded (4 Side)	0.15 in	3.81 mm	4	Through Hole	UL94 V-0	0.102 in	2.6 mm	Solder	Copper	2	8	90° Right Angle	5.5 A	-40 °C	115 °C		300 V	Thermoplastic	15.19 mm	0.598 "
Amphenol Anytek KE081250A000G	Tin	Green	Header Male Pins Shrouded (4 Side)	0.138 in	3.5 mm	4	Through Hole	UL94 V-0	0.102 in	2.6 mm	Solder	Copper	2	8	Vertical	5.5 A	-40 °C	115 °C	Mating Flange	160 V	Thermoplastic			0.524 in	13.3 mm
Amphenol Anytek KE0871520000G	Tin	Green	Header Male Pins Shrouded (4 Side)	0.197 in	5 mm	4	Through Hole	UL94 V-0	0.102 in	2.6 mm	Solder	Copper	2	8	Vertical	12 A	-40 °C	115 °C		300 V	Thermoplastic	17.6 mm	0.693 in
Amphenol Anytek KE0853520000G	Tin	Green	Header Male Pins Shrouded (4 Side)	0.2 in	5.08 mm	4	Through Hole	UL94 V-0	0.102 in	2.6 mm	Solder	Copper	2	8	Vertical	12 A	-40 °C	115 °C	Locking Ramp	300 V	Thermoplastic	17.6 mm	0.693 in
Amphenol Anytek KE0874520000G	Tin	Green	Header Male Pins Shrouded (2 Side)	0.197 in	5 mm	4	Through Hole	UL94 V-0	0.102 in	2.6 mm	Solder	Copper	2	8	Vertical	12 A	-40 °C	115 °C		300 V	Thermoplastic	17.6 mm	0.693 in
Amphenol Anytek KE083251A000G	Tin	Green	Header Male Pins Shrouded (4 Side)	0.15 in	3.81 mm	4	Through Hole	UL94 V-0	0.102 in	2.6 mm	Solder	Copper	2	8	90° Right Angle	5.5 A	-40 °C	115 °C	Mating Flange	300 V	Thermoplastic	15.19 mm	0.598 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.70
		10	$ 0.49
		25	$ 0.46
		50	$ 0.42
		100	$ 0.41
		250	$ 0.35
		500	$ 0.33
		2240	$ 0.32

Description

General part information

KE08 Series

8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole
